Fire-rated Wall Tecbor® A 10 EI-120 Panel on concrete block

Solution

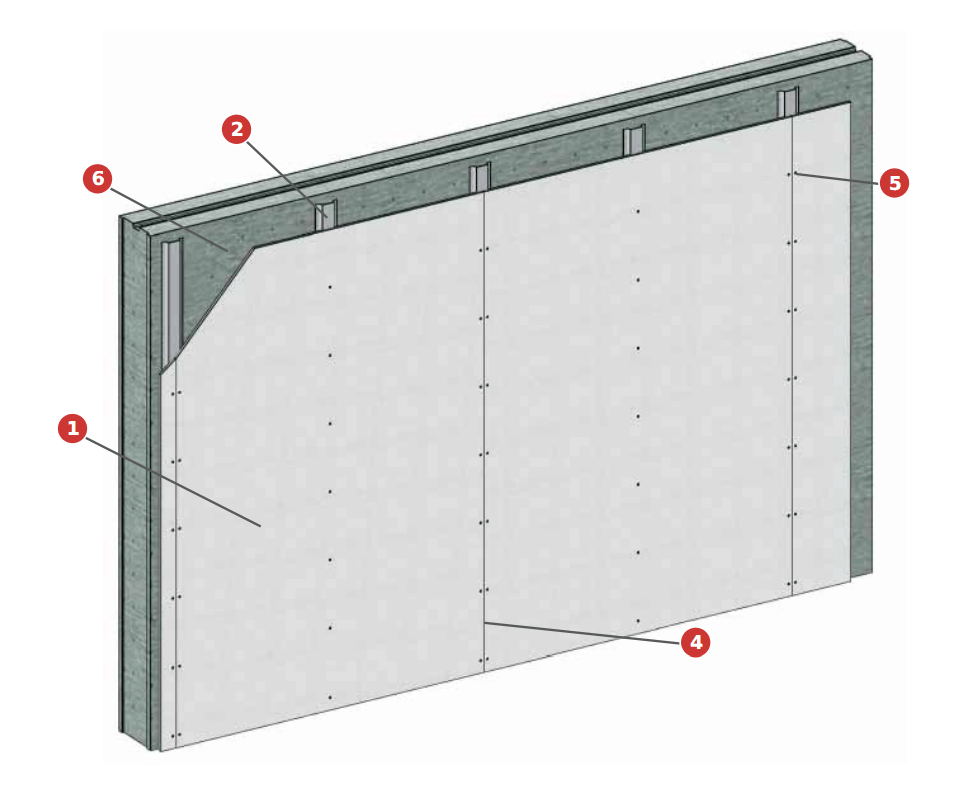

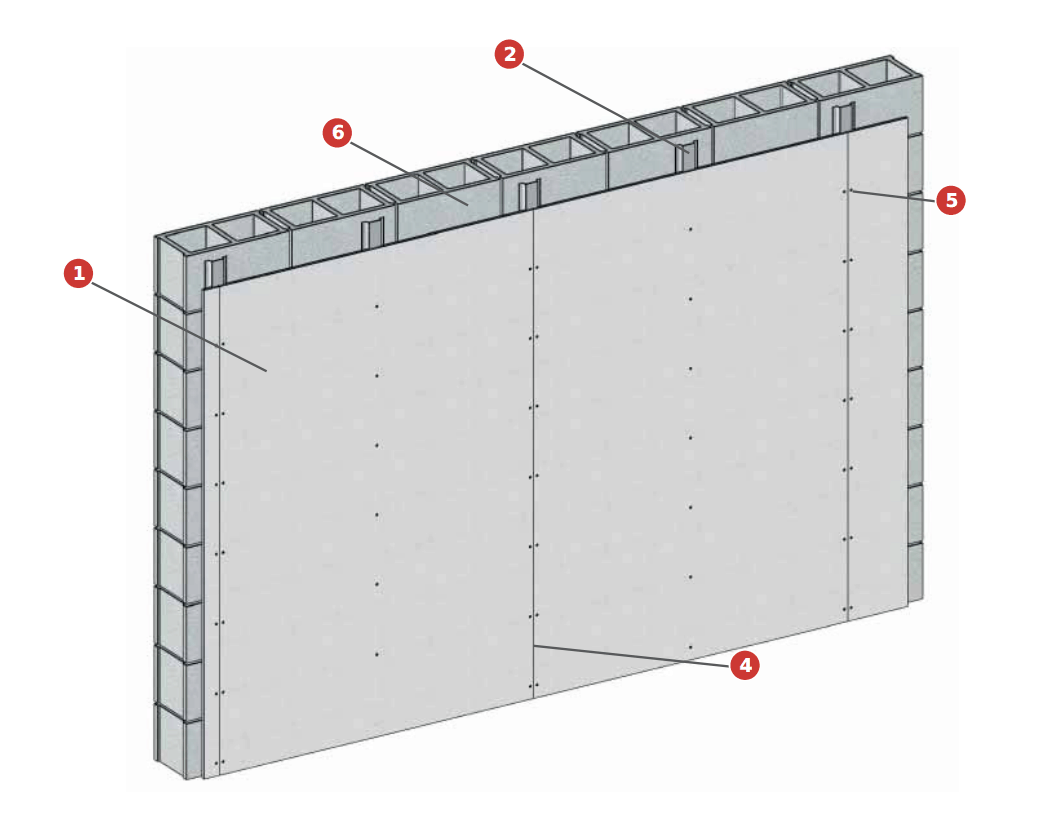

1. Tecbor® A 10 mm boards.
2. 15 × 45 × 0, 5 mm omega sections.
3. 5 × 65 mm umbrella type metal plug.
4. Tecbor® joint paste.
5. 3, 5 × 25 mm self-tapping.
6. Concrete block wall

Test

• Standard: UNE EN 1364-1
• Laboratory: CIDEMCO
• Test Nº: 16876-1/-2 M1

Non-structural walls, which separate fire areas, should be fire-resistant as stipulated in standard EN 1364-1.

When in fire resistance tests for non-structural elements one edge is left free (Part 1: Walls), the standard allows increasing the width.

With regard to increasing the height, the standard is clear and precise. When the test is run at least at 3 metres high, it may be increased up to 4 metres.

Very often, internal partitions are higher than 4 metres. mercor tecresa® have been the first to develop large partitions and offers the most efficient and convenient solution for this type of works.

Besides, penetrations produced between different fire sectors must be sealed off; for example, in the case of services crossing. Check the Tecsel® Sealing System catalogue to find the most suitable solution.

Description of assembly

• On a 15 cm hollow concrete block, attach the 15 × 45 × 0.5 mm omega metal profi les every 610 mm using umbrella-type 5 × 65 mm anchors. Then fi x Tecbor® A 10 mm boards with 3.5 × 25 mm selfdrilling screws.
• Use Tecbor® joint paste in screw heads and between boards.
• Distance between screws should be 250-300 mm approximately
