Tecbor® EI-120 2-Sided Fire Independent Wall Lining
Manufacturer: Mercor
Fire resistance class: EI120
Tecbor® EI-120 2-Sided Fire Independent Wall Lining.
price on request
Order
*Product descriptions are based on manufacturer information. Descriptions and images are indicative and may change. Configuration or parameters may be adjusted according to manufacturer updates.

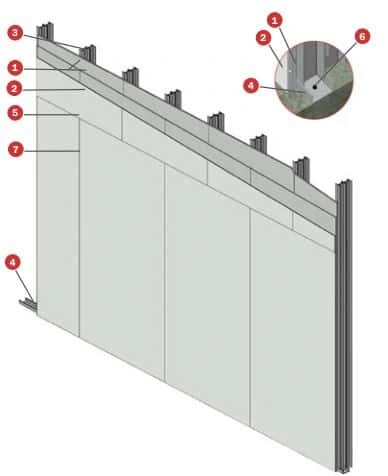

SOLUTION
- Tecbor® 15 mm boards.
- 12, 5 m laminated plasterboard.
- 34, 8 × 40 × 0, 5 mm H-shaped double stud.
- 83 × 40 × 0, 5 mm runner.
- 3, 5 × 35, 45 and 55 mm self-drilling screw (every 250 mm).
- Punch-activated drop.in 6 mm anchor, every 600 mm.
- Tecbor® joint paste or Tecbor® bonding compound. (on every joint and over the screw heads).
Description of Assembly
Attach 83 × 40 × 0, 65 mm runners and assemble the 34, 8 × 40 × 0, 6 mm studs every 600 mm.
Then fix Tecbor® 15 mm boards to both sides with 3, 5 × 35 mm self-tapping screws every 250 mm.
Finally, cover board joints and screw heads with Tecbor® joint paste or Tecbor® bonding compound.
TEST
- Standard: UNE EN 1364-1
- Laboratory: TECNALIA
- Test Nº: 076765-002-1/2
