Fire-rated Wall Tecbor® A 12+12 EI-90 Independent wall lining

Solution

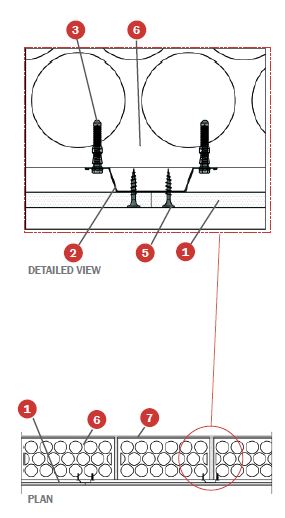

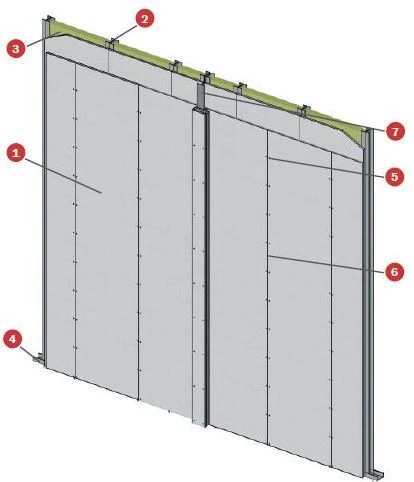

1. Tecbor® A 12 mm boards.
2. 70 × 36 × 0, 6 mm H-shaped stud.
3. 60 mm (30+30) and 100 kg/m3.
4. 73 × 30 × 0, 5 mm runner.
5. 3, 5 × 35 mm self-drilling screw.
6. Tecbor® joint paste.
7. Metal profile.

Test

• Standard: UNE EN 1364-1
• Laboratory: CIDEMCO
• Test Nº: 19216-1/-2 M1

Non-structural walls, which separate fire areas, should be fire-resistant as stipulated in standard EN 1364-1.

When in fire resistance tests for non-structural elements one edge is left free (Part 1: Walls), the standard allows increasing the width.

With regard to increasing the height, the standard is clear and precise. When the test is run at least at 3 metres high, it may be increased up to 4 metres.

Very often, internal partitions are higher than 4 metres. mercor tecresa® have been the first to develop large partitions and offers the most efficient and convenient solution for this type of works.

Besides, penetrations produced between different fire sectors must be sealed off; for example, in the case of services crossing. Check the Tecsel® Sealing System catalogue to find the most suitable solution.

Description of assembly

• Attach 73 × 30 × 0.5 mm runners and assemble 70 × 36 × 0.6 mm studs every 610 mm. Fill in frame with 60 mm (30+30 mm) and 100 kg/m3 rock wool panels.
• Attach both Tecbor® A 12 mm board layers with 3.5 × 35 mm selftapping screws every 200-250 mm alternating the layers.
• Use Tecbor® joint paste in screw heads and between boards.
• Upon running the test, a 0.6 mm thick galvanised sheet was mounted on the unexposed surface, fixed to the studs with 13 mm sheet-metal screws. This sheet is not fire-resistant; therefore, it can be replaced in the final assembly.
• An IPN 140 metal profile was placed in the test furnace frame centre.
