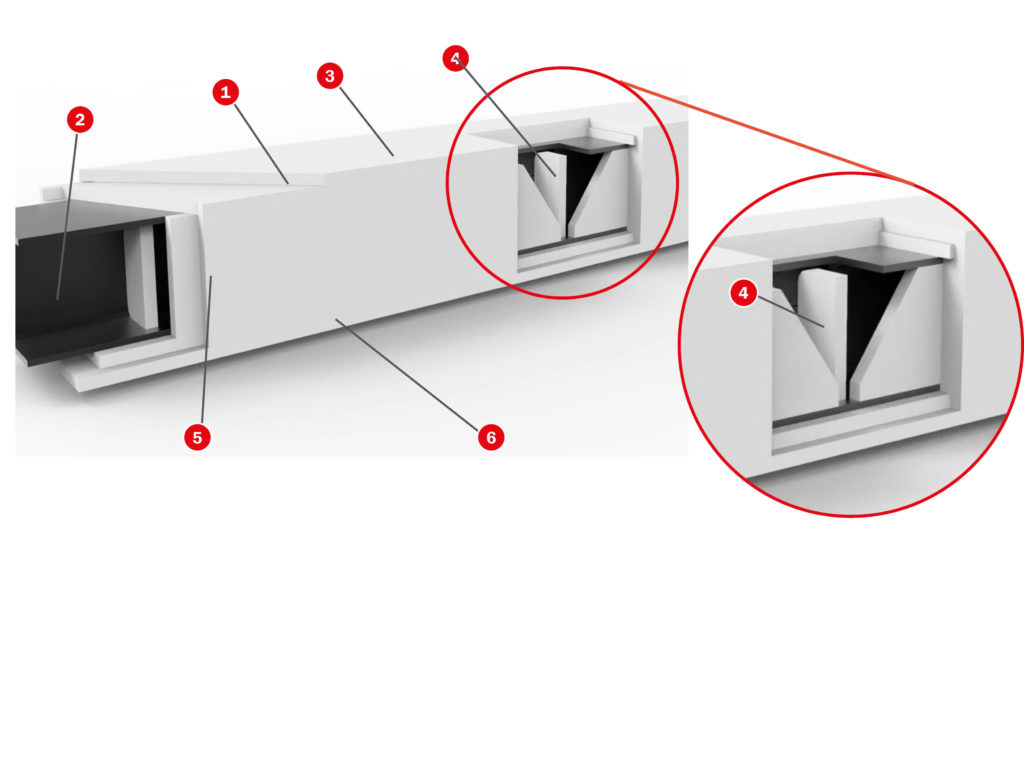

Plate clamping system

Rating:

4.4/5 based on 1 reviews!

TEST

Standard: UNE ENV 13381-4
Laboratory: TECNALIA
Test Nº: 058417-002

SOLUTION

Tecbor® Boards.
Profile.
Self-tapping screw (size according to board).
Stiffener Tecbor® 20 mm.
Tecbor® board 20 mm.
Tecbor® joint paste.

price on request

Order

*Product descriptions are based on manufacturer information. Descriptions and images are indicative and may change. Configuration or parameters may be adjusted according to manufacturer updates.

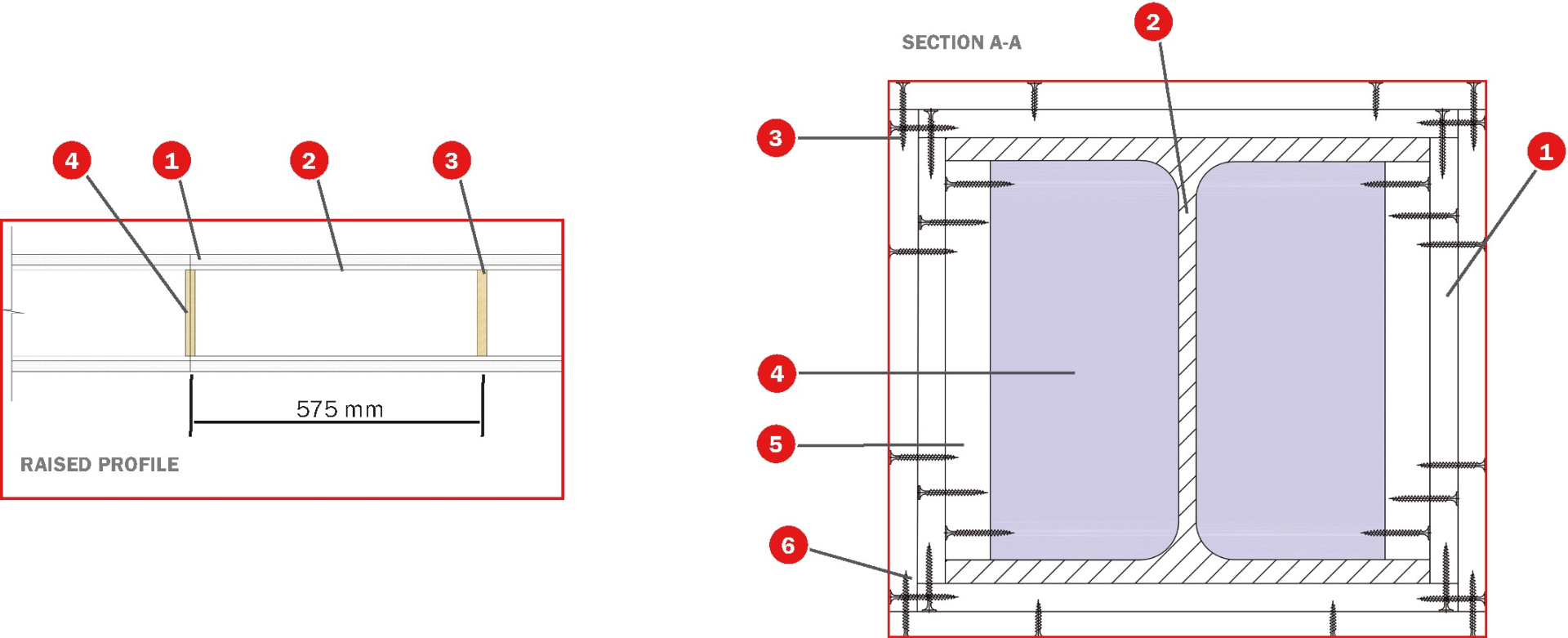

Cut stiffeners with Tecbor® 20 mm boards, adapted to the measurements of the metal profile to be protected. Insert them perpendicular to the axis of the profile at intervals of no more than 575 mm.

Cut Tecbor® board strips of the measurement between the flanges of the metal profile to be protected. Attach these strips to the stiffeners using self-tapping screws, so that the joint between the plates overlaps on a support stiffener.

Attach the Tecbor® boards of a thickness equal to or greater than 20 mm to each other and anchored them onto the plate stiffeners using self-tapping screws every 250 mm.

Use Tecbor® joint paste in screw heads and between boards.
