TECBOR® 10 Curtain Wall With Crossing The Slab EI-120

Rating:

4.5/5 based on 1 reviews!

TEST

Standard: UNE EN 1364-4
Laboratory: CIDEMCO
Test Nº: 12_02712

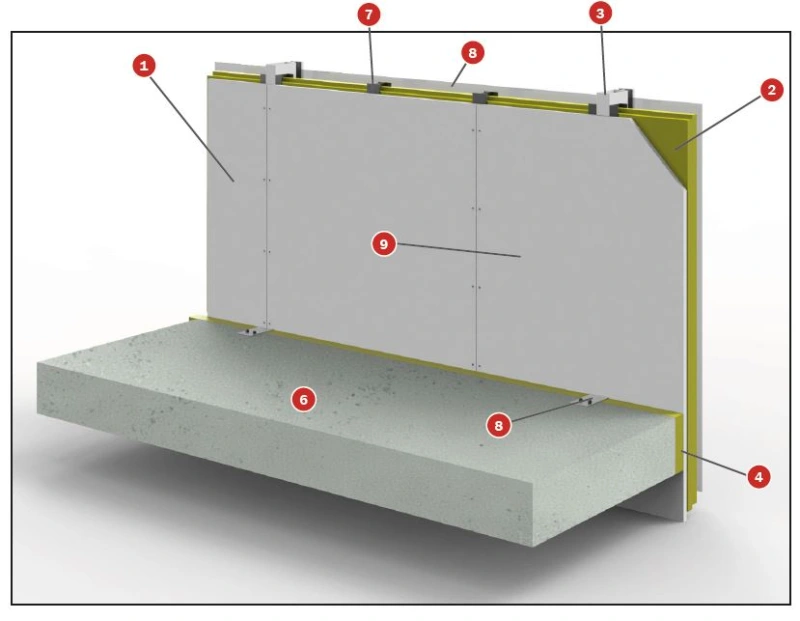

SOLUTION

10 mm Tecbor® 20 mm boards.
48 × 30 × 0, 5 mm metal runner.
3, 5 × 35 mm self-tapping screw.
3, 5 × 45 mm self-tapping screw.
10 × 60 mm Stud anchor.
Slab.
46 × 36 × 0, 6 mm Frame.
13 mm plasterboard panel.
70 × 70 × 1 mm L-shapped profile.

price on request

Order

*Product descriptions are based on manufacturer information. Descriptions and images are indicative and may change. Configuration or parameters may be adjusted according to manufacturer updates.

Description
Reviews

This is an asymmetrical Tecbor curtain wall system. Confirm the slab interface from the applicable tested arrangement.

It consists in a 13 mm laminated plaster partition, without wool, fixed on the inner side to a 46 mm metal stud by using a 3.5 × 35 mm screw. The opposite side has a 10 mm Tecbor® board fixed to the 46 metal stud by using 3.5 × 35 mm screws.

On the lower part of the slab, Tecbor® boards are installed with a 70 × 70 × 1 mm L-shaped profile and a 3.5 × 45 mm screw.
