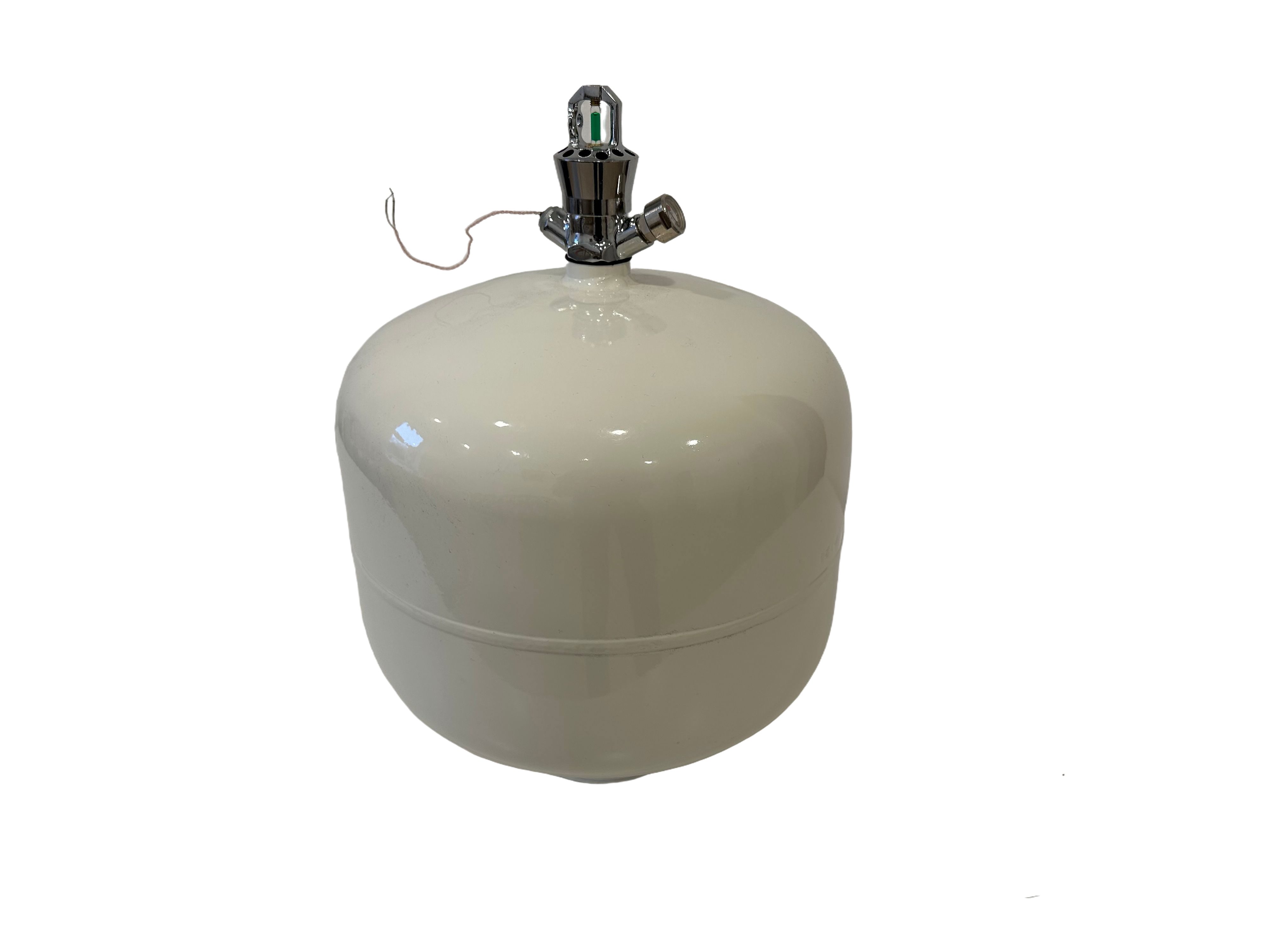

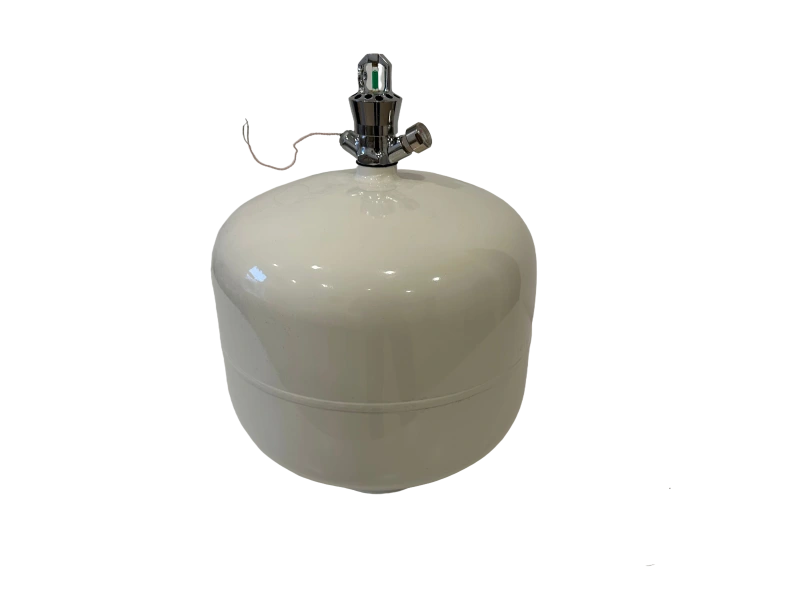

SPRUT-6 Powder Fire Extinguishing Modules, With connection to the AFAS

SPRUT Powder Fire Extinguishing Modules (MPP) are an effective means for extinguishing Class A, B, C, and E fires, both in small quantities (garages, electrical cabinets, containers, diesel equipment, etc.) using autonomous modifications, and in large volumes and areas (workshops, warehouses, oil and gas storages, cable vaults, etc.) using the possibility of constructing automatic modification fire extinguishing systems.

Recommended Applications of SPRUT Powder Fire Extinguishing Modules

• Energy Industry Facilities

• Warehouses, bases, oil storage facilities, hangars, and garages

• Oil and gas processing and extraction enterprises

• Chemical industry facilities

• Transport infrastructure and facilities

• Paint and varnish manufacturing plants

• Industrial, agricultural, and commercial facilities

Technical Specifications of the Fire Extinguishing Module

• Powder Charge Mass, kg (not less than): 6.0 ± 0.2

• Total Module Mass, kg (not more than): 10.6

• Module Inertia During Electrical Start, s (not more than): 1.0

• Module Self-Ignition Temperature, °C: 68 ± 3% or 93 ± 3%

• Working Pressure Inside the Module Vessel at Ambient Temperature of 20°C, MPa (kgf/cm²): 1.40 ± 0.05 (14.00 ± 0.5)

Protected Area, m²:

• Class A: 48

• Class B: 30

Protected Volume, m³:

• Class A: 130

• Class B: 46

• Fire Extinguishing Capability (Model Fires According to DSTU 3675), m²:

  • For Class A: 3.55

  • For Class B: 4.52

Dimensions, mm (not more than):

• Height: 310

• Diameter: 265

• Storage and Operating Temperature Range, °C: From -20 to +60
