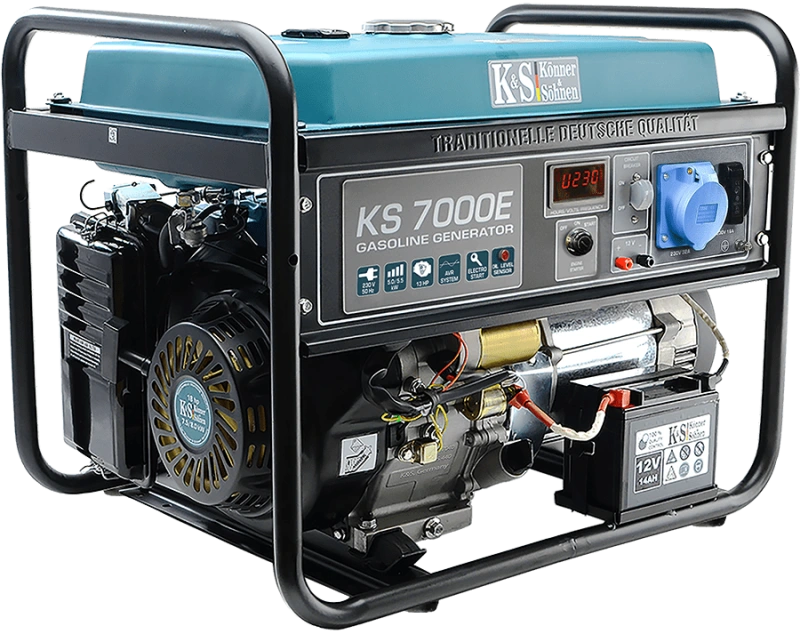

petrol generator "Könner & Söhnen" KS 7000E

• Max Output 5.5 kW
• Rated Output 5.0 kW
• Engine power 13.0 HP
• Launch type Manual / Electric
• Engine type petrol
• Engine model KS 390
• Outlets 1x16 A
• 1 × 32A
• Fuel tank volume 25 l
• Crank case volume 1.1 l
• 50% power working time 17 h
• Net weight 76.2 kg
• Voltage 230 V
• Frequency 50 Hz

INDIVIDUAL SERIAL NUMBERS ON ENGINES

Könner & Söhnen engines meet all world and European standards of quality, including the latest EURO V emission standards. This is proved by European certificates of quality. Each engine and each generator have their own individual serial number, which allows us to control the quality of production and service.

CONVENIENT ERGONOMIC CONTROL PANEL WITH ELECTIC START

Convenient and ergonomic panel of generator allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintenance the generator, extending the life of the operation.

ALTERNATOR WITH 100% COPPER WINDING

TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.

EASY START SYSTEM

Easy start system system allows you to start the engine quickly and to do this without much effort. For ease of use, generators of this type have three types of startup – manual, electric and automatic. More powerful models are additionally equipped with an electric start system.

STEEL TANK

“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank, which extends the generator’s operating time without refuelling. The fuel level indicator is located on the tank for ease of use.

DAMPERS TO LOWER VIBRATION

All models of the Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. Thanks to the rubber damper, the working generator will not damage the floor covering, and the frame coating will not be scratched.

• Voltage, V 230
• Max power, kW 5.5
• Nominal power, kW 5.0
• Frequency, Hz 50
• Current, A (max) 23.91
• Outlets 1 × 16A
• 1 × 32A
• Fuel tank volume, l 25
• 50% power working time 17
• LED display Voltage, frequency, working hours
• Noise level Lpa/Lwa, dB 70/95
• Power output DC, V/A 12/8.3
• Engine model KS 390
• Engine type petrol powered one-cylinder, four-stroke air-cooled
• Engine power hp/kW 13.0/9.56
• Crank case volume, cm3 1.1
• Engine cylinder volume, cm3 389
• Power output controller Intelligent voltage stabilization system AVR
• Engine start Manual / electro
• Power factor, cosφ 1
• Net dimensions (L*W*H), mm 680 × 545 × 550
• Gross dimensions (L*W*H), mm 700 × 545 × 590
• Net weight, kg 76.2
• Gross weight, kg 78.6
• Protection class IP23M
• EAN code 4260405361120
