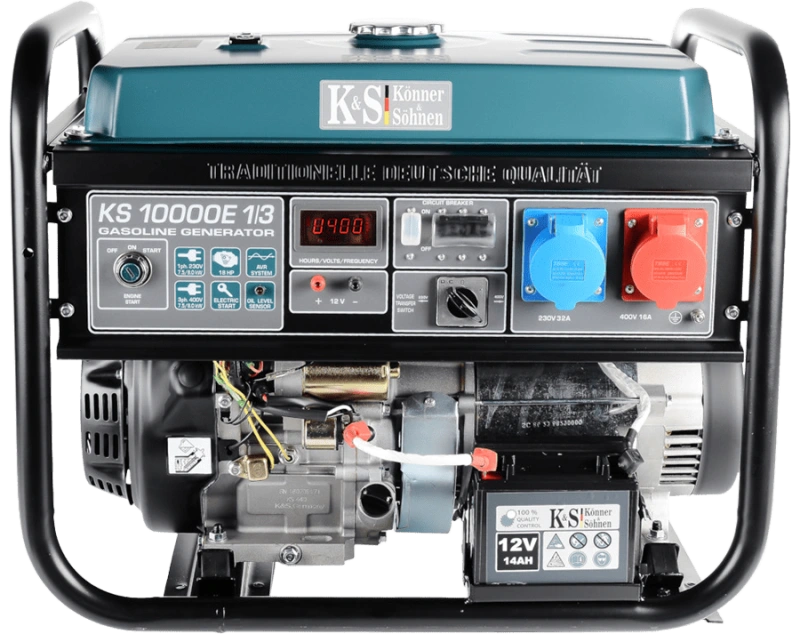

petrol generator "Könner & Söhnen" KS 10000E 1/3

• Max. Power/ Nominal Power 230V 8.0/7.5 kW
• Max. Power/ Nominal Power 400V 8.0/7.5 kW
• Engine power 18 hp
• Engine start Manual/Electro
• Fuel type petrol
• Engine model KS 440
• Outlets 1x16A (400V), 1 × 32A (230V)
• Fuel tank volume 25 l
• Crank case volume 1.2 l
• 50% power working time 15 h
• Net weight 88 kg
• Voltage 230V/400V
• Frequency 50 Hz

VTS SYSTEM

The unique innovative VTS (Voltage Transfer Switch) phase switching system with equal power for single-phase (230V) and three-phase (400V) consumers. Each mode has its own circuit breaker.

KÖNNER & SÖHNEN ENGINES

Each TM Könner & Söhnen engine has an additional power reserve, which ensures TM Könner & Söhnen generators deliver the declared power for sure.

INDIVIDUAL SERIAL NUMBERS ON ENGINES

Könner & Söhnen engines meet all world and European standards of quality, including the latest EURO V emission standards. This is proved by European certificates of quality. Each engine and each generator have their own individual serial number, which allows us to control the quality of production and service.

Könner & Söhnen motors have easy start and low vibration. The KS 10000 range of petrol generators is equipped with a reliable 1-cylinder 18 hp engine.

CONVENIENT ERGONOMIC CONTROL PANEL

Convenient and ergonomic panel of generator allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintenance the generator, extending the life of the operation.

EQUIPMENT

The generator panel is equipped with ergonomic connectors for connecting single- and threephase consumers. High-output sockets are made of high-quality heat-resistant plastic.

SYNCHRONOUS ALTERNATOR

The synchronous alternator with integrated intelligent AVR system is specially designed for singleand three-phase operation without loss of power. High workmanship and copper winding can withstand prolonged ultimate loads.

EASY START SYSTEM

Easy start system system allows you to start the engine quickly and to do this without much effort. For ease of use, generators of this type have two types of startup – manual and electric. More powerful models are additionally equipped with an electric start system.

STEEL TANK

“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank, which extends the generator’s operating time without refuelling. The fuel level indicator is located on the tank for ease of use.

REINFORCED STEEL FRAME

This model is equipped with a strong steel frame with a diameter of ø 32 mm, which serves to protect the generator from various kinds of damage and provides convenient transportation.

DAMPERS TO LOWER VIBRATION

All models of the Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. Thanks to the rubber damper, the working generator will not damage the floor covering, and the frame coating will not be scratched.

* Only in case that the welding inverter has 85% efficiency and an arc voltage of 25 V. Voltage, V 230

• Voltage, V 230/400
• Max. Power/ Nominal Power, 230V, kW 8.0 / 7.5
• Max. Power/ Nominal Power, 400V, kW 8.0 / 7.5
• Frequency 50 Hz
• Current, A(max) 34.78 / 14.45
• Outlets 1x16A (400V), 1 × 32A (230V)
• Fuel tank volume, l 25
• 50% power working time 15
• LED display Voltage, frequency, working hours
• Noise level Lpa/Lwa, dB 71/96
• Power output DC, V/A 12/8.3
• Engine model KS 440
• Engine type petrol powered one-cylinder, four-stroke air-cooled
• Engine power hp/kW 18.0/13.24
• Crank case volume, l 1.2
• Engine cylinder volume, cm3 440
• Power output controller AVR
• Engine start Manual / Electro
• Power factor, cosφ 1.0 / 0.8
• Net dimensions(LxBxH), mm 680 × 545 × 550
• Gross dimensions(LxBxH), mm 700 × 545 × 590
• Net weight, kg 88
• Gross weight, kg 90
• Protection class IP23M
• EAN code 4260405361601
