Foam fire nozzle

Rating:

0/5 based on 0 reviews!

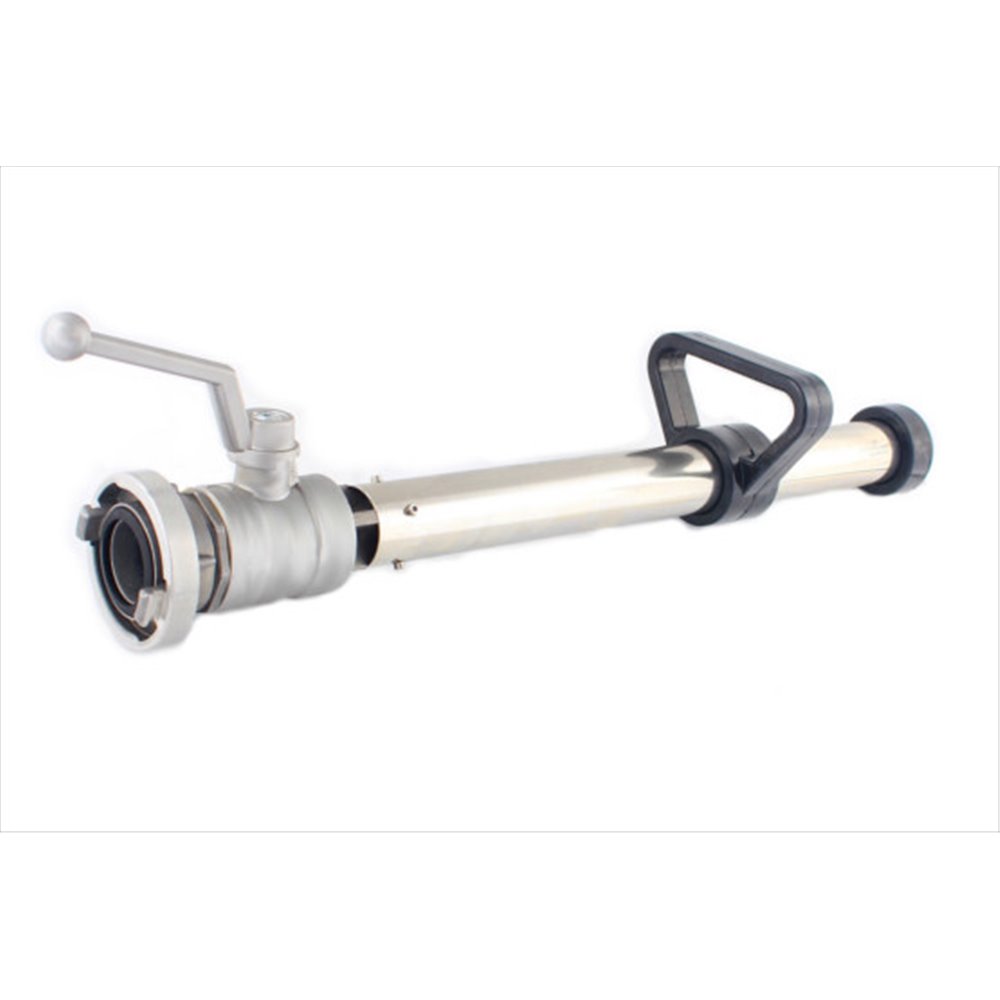

The foam nozzle is designed to produce heavy foam using protein and synthetic foaming agents. The nozzle can be equipped with an aluminium shut-off valve. The outlet pipe is made of stainless steel with a rubber grip.

price on request

Order

*Product descriptions are based on manufacturer information. Descriptions and images are indicative and may change. Configuration or parameters may be adjusted according to manufacturer updates.

Description
Reviews

Dimensions

Size	catalogue number	Inlet	flow [l/min]	Length [mm]	Width [mm]	Height [mm]	Weight [kg]	Comments
S2 (PP2)	02016100000	52/C	200	636	131	98	1, 900	without valve
S2 (PP2)	02016000000	52/C	200	748	184	98	2, 700	PN-93/M-51068
S4 (PP4)	02016400000	52/C	400	742	138	98	3, 700	without valve
S4 (PP4)	02016300000	52/C	400	866	194	118	4, 400	PN-93/M-51068
S8 (PP8)	02016600000	75/B	800	846	149	126	3, 700	without valve
S8 (PP8)	02016700000	75/B	800	975	198	126	4, 500	PN-93/M-51068

The range of throws and the number of foaming

Size	Flow	Foaming number	Throw range
S2 (PP2)	200	12-15	23
S4 (PP4)	400	12-15	26
S8 (PP8)	800	12-15	28
M2 (WP2)	200	50 - 60	8
M4 (WP4)	400	60 - 70	10
M8	800	45 - 50	12
S2 / M2	200	15 / 50	23/7
S4 / M4	400	15 / 60	26/8
Concentration 3%, working pressure 5 bar. Values are approximate and may vary depending on ambient temperature.
