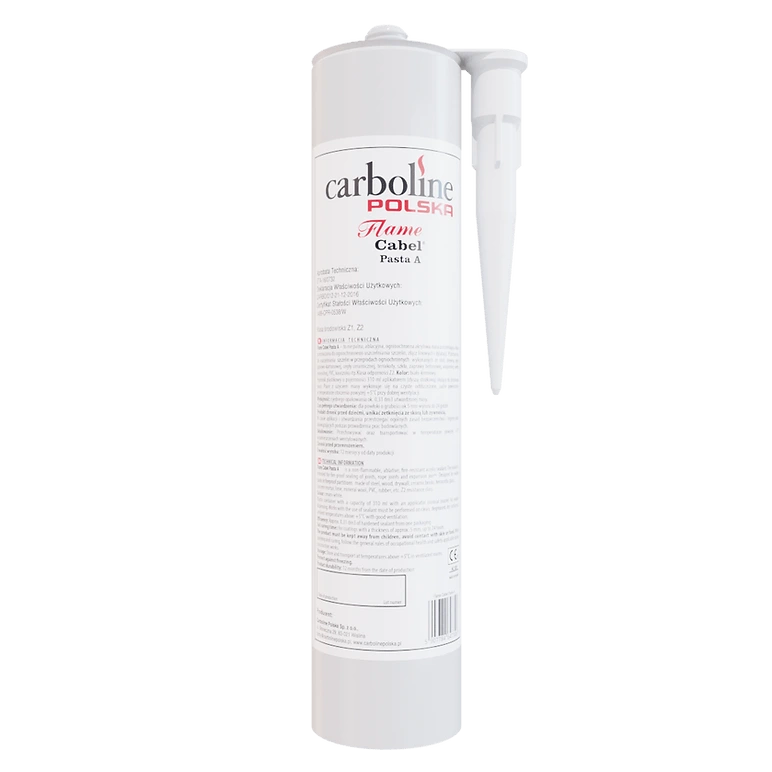

Fire-stopping paste A (310 ml)

TECHNICAL DATA:

• Fire resistance class: up to EI 120
• Colour: creamy
• Environmental class: Z1, Z2
• Density: 1.56 ± 5% g/cm³
• non-volatile content, %: 79.0 ± 5%
• Storage temperature range: from +5°C to +30°C
• Shelf life, no limit to application: 10 months in originally sealed container
• Theoretical paint amount (kg / m²) needed to obtain 1mm thick coating: 1, 93 kg/m²
• Commercial package: 310ml
• Oxygen index: ≥45 (i.e. completely non-flammable product)
• Technical Approval: AT-15-7807/2016, ETA-15/0853 (expansion joints)
• Cert. of conformity: ITB-2404/W
• Hygienic certificate: HK/B/0557/01/2014
• declaration of conformity: CARBO/002-07-01-2016

APPLICATION:

The way of protecting flammable pipes with mineral wool cover.

•

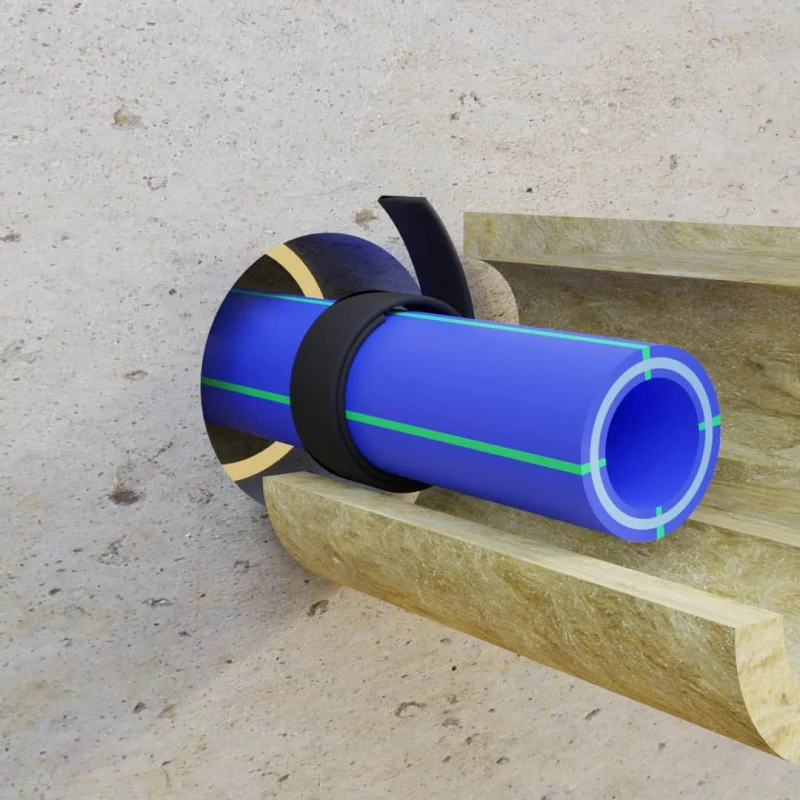

  Step 1: Put Multitube on the pipe under the insulation and slide it into the wall. Then put insulation on the pipe and a tape.
•

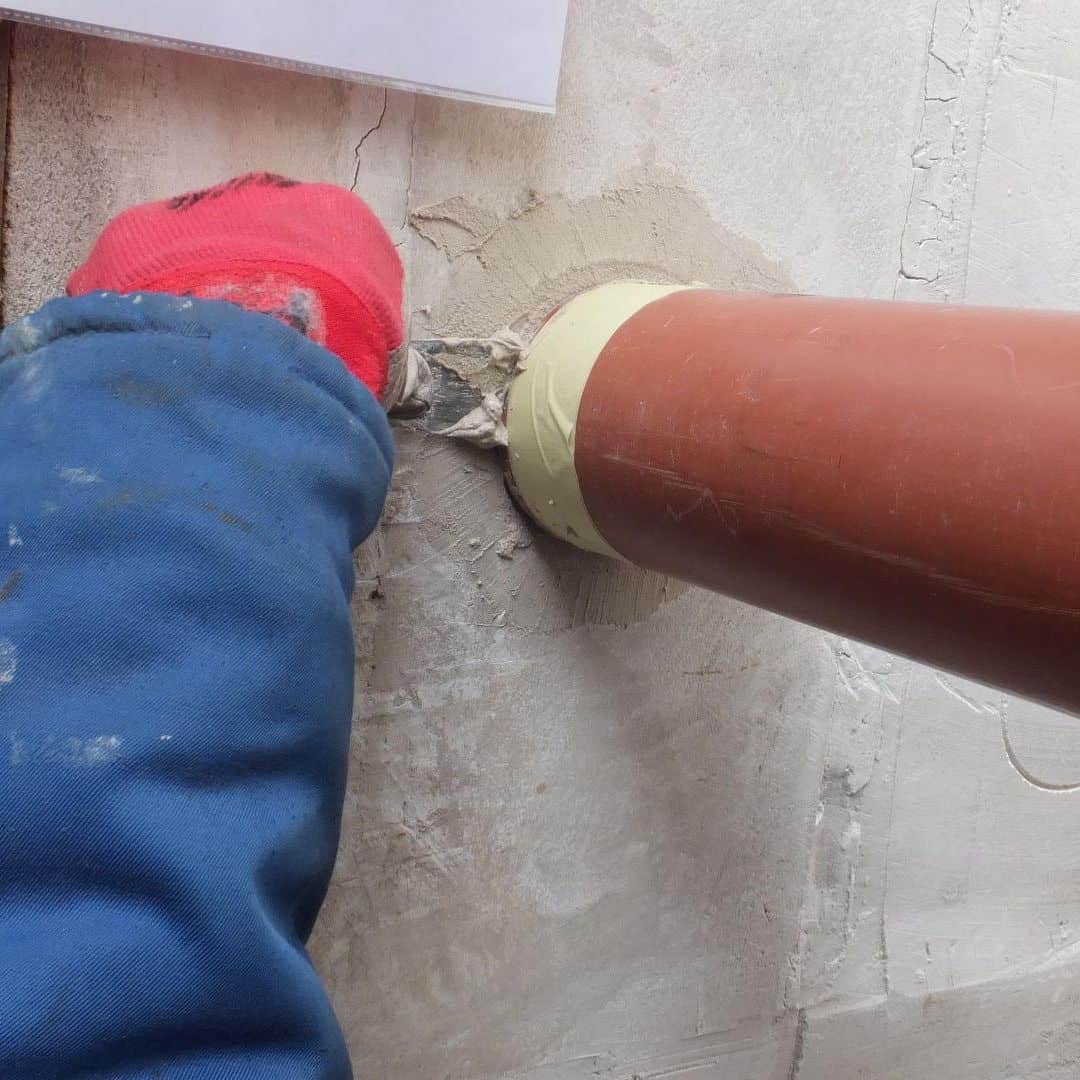

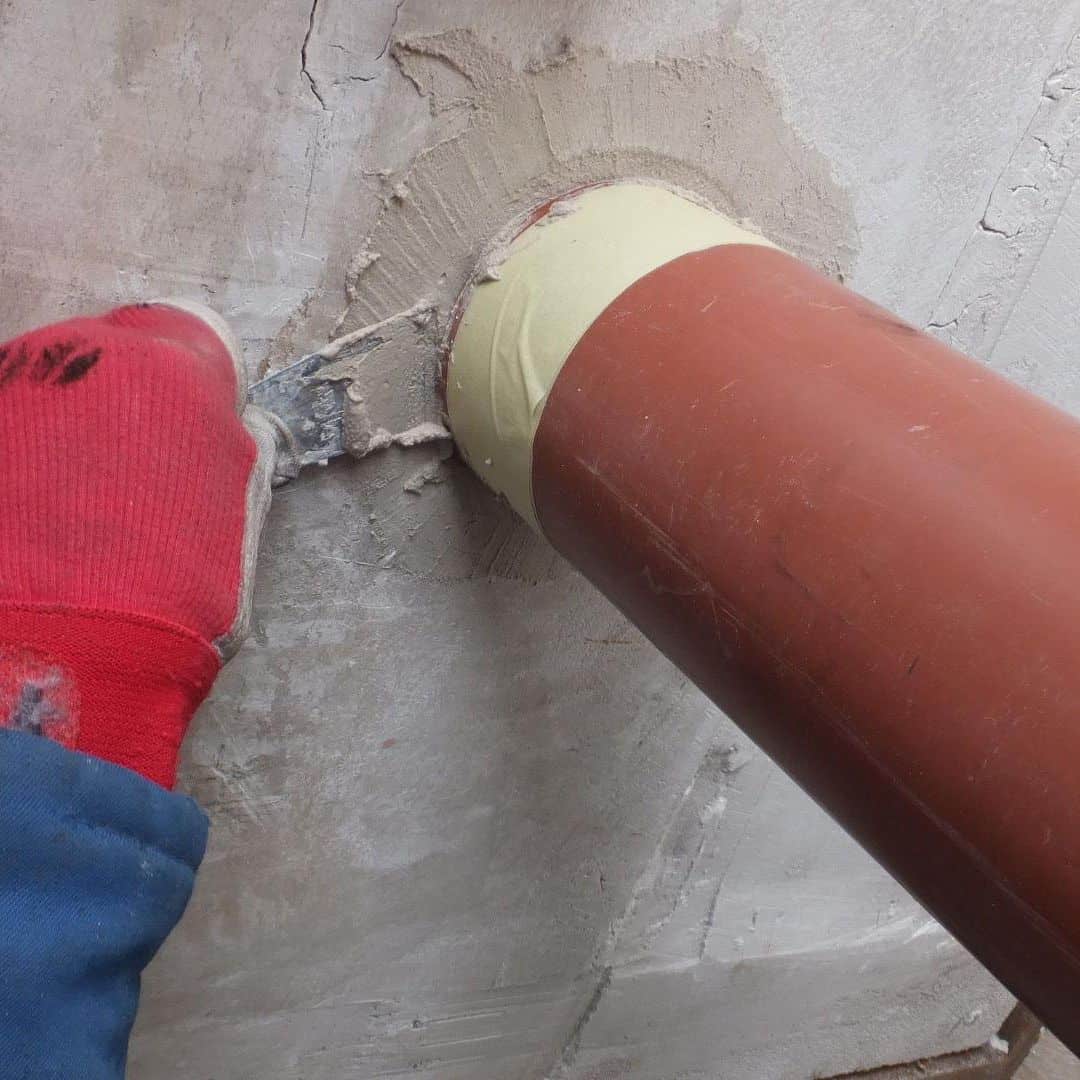

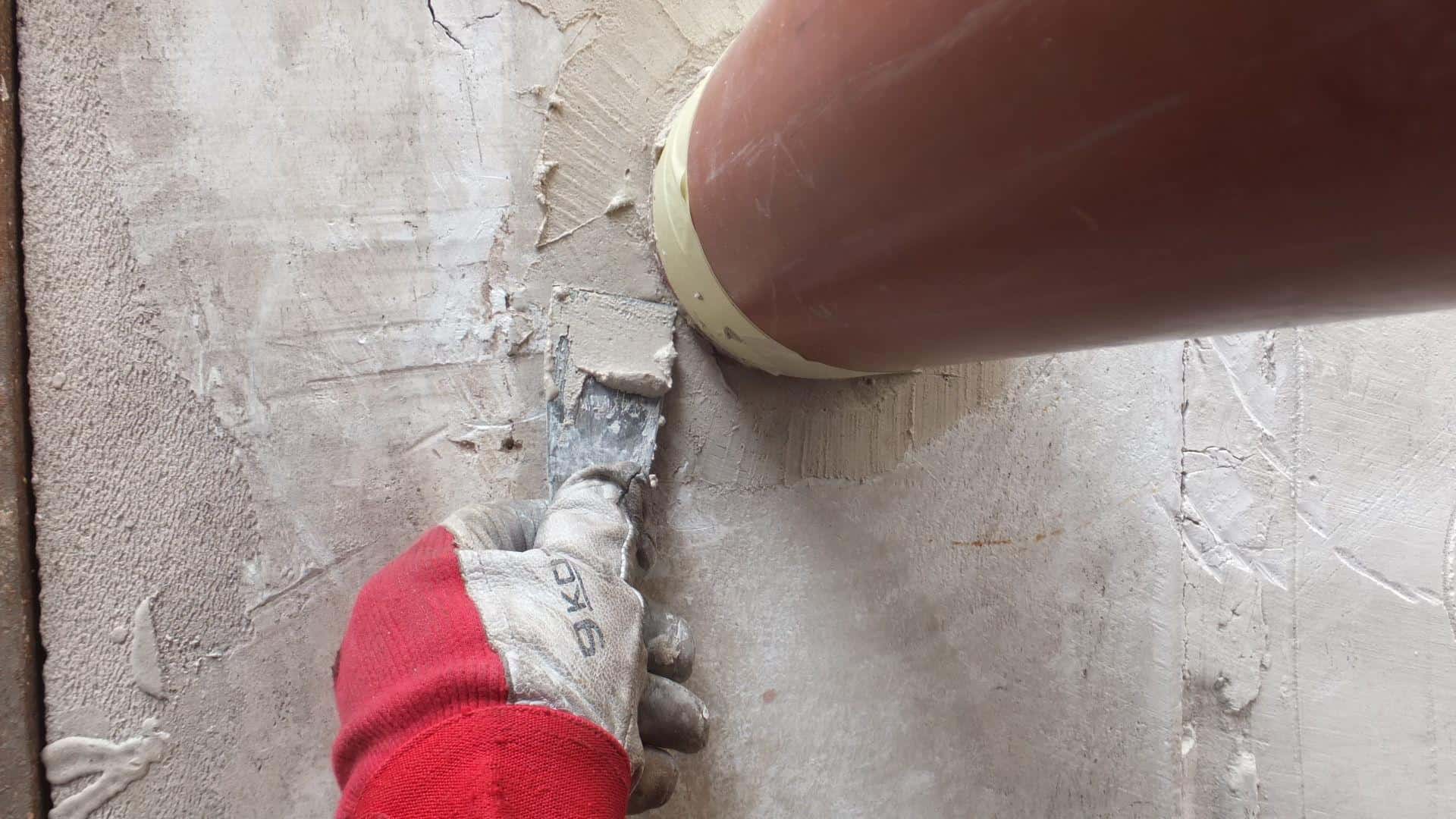

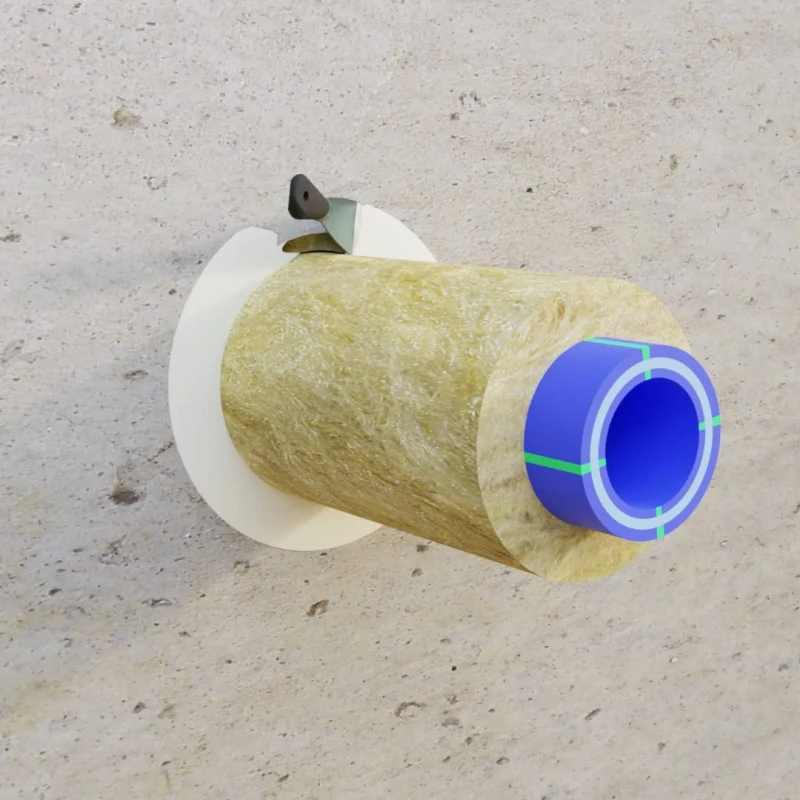

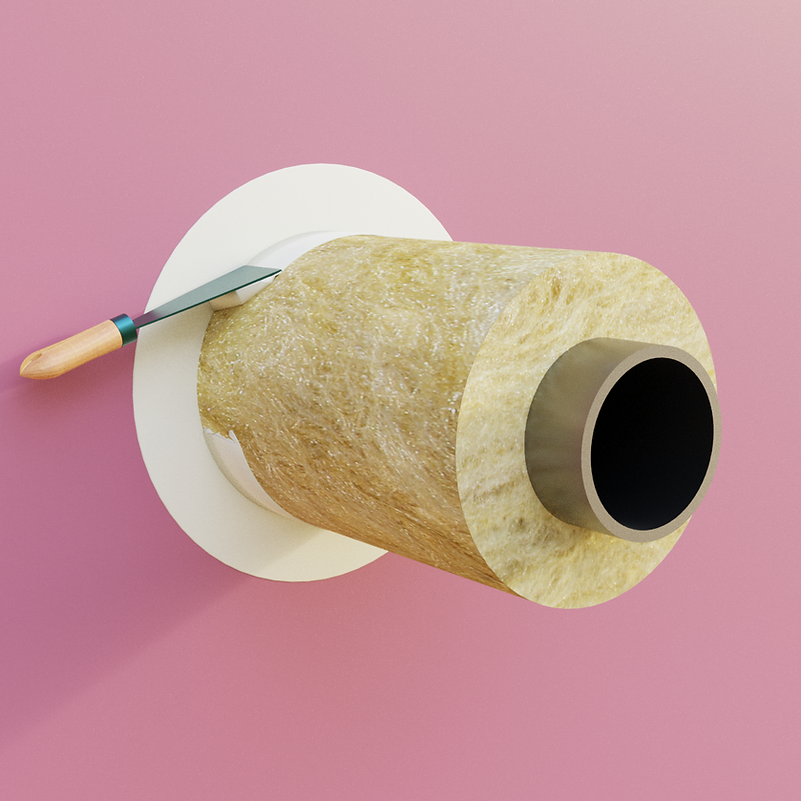

  Step 2: Fill the remaining space with mineral wool. By using a putty knife, apply Flame Cabel Pasta A to form a ring with a width of min. 50 mm and thickness min. 0.6 mm.
•

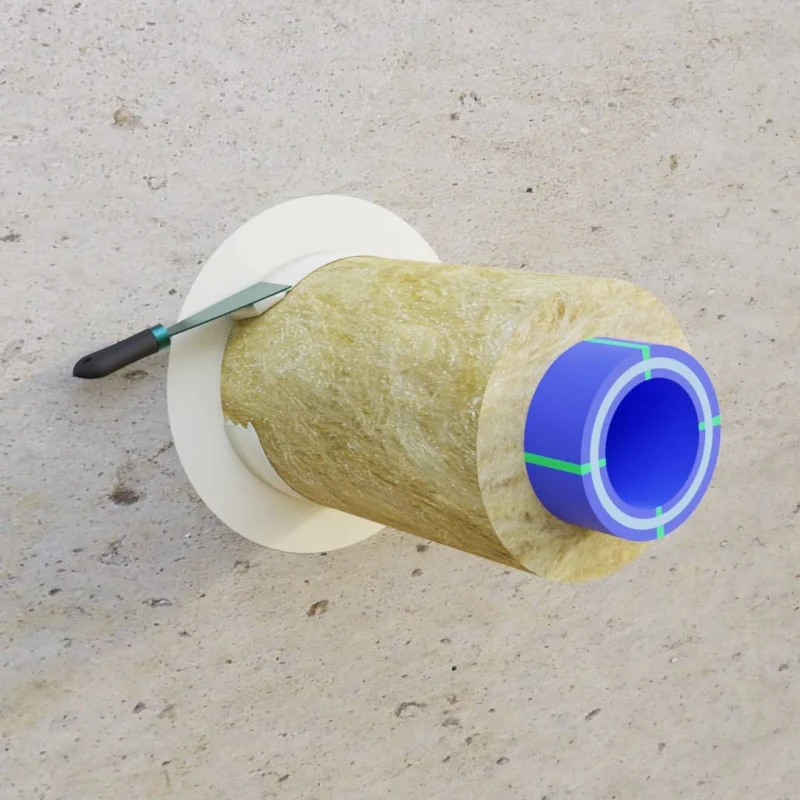

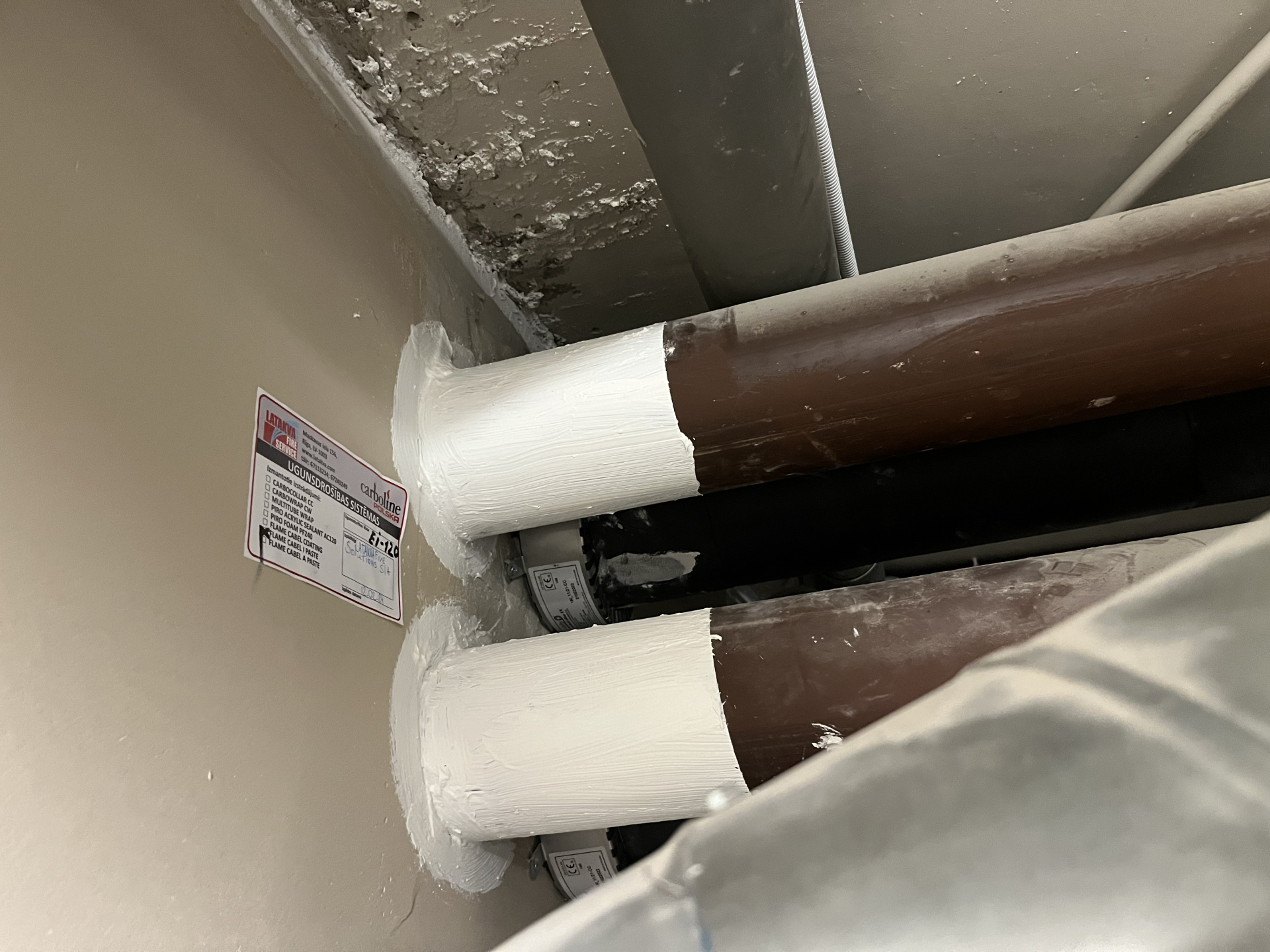

  Step 3: Apply Flame Cabel Pasta A to the pipe cover so that a ring forms with a width of min. 50 mm and thickness min. 0.6 mm.
•

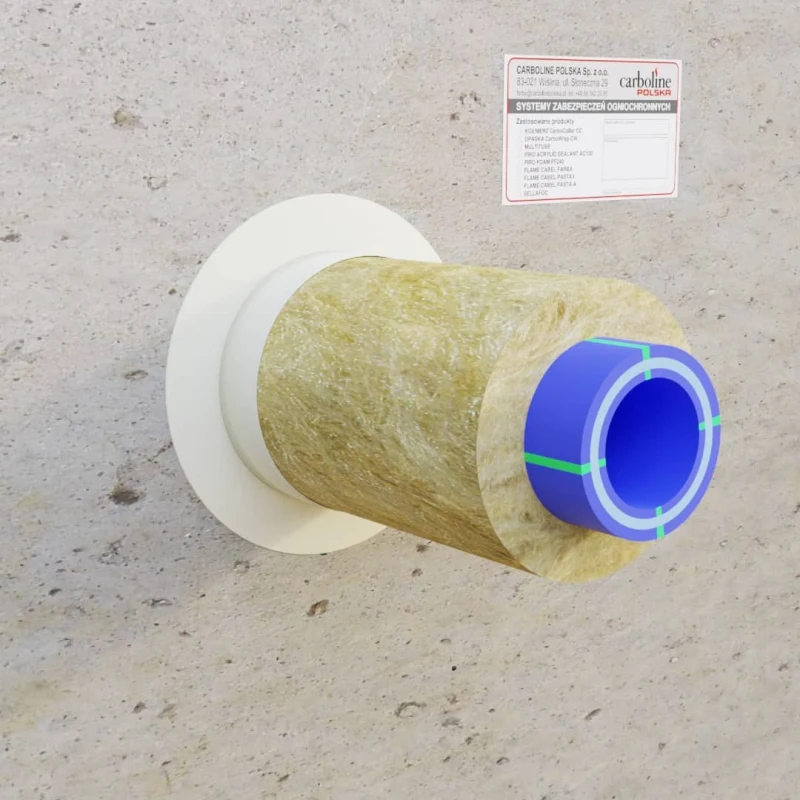

  Step 4: Mark the penetration with the attached label, mark Flame Cabel Pasta A and Multitube on it, enter the date and name.

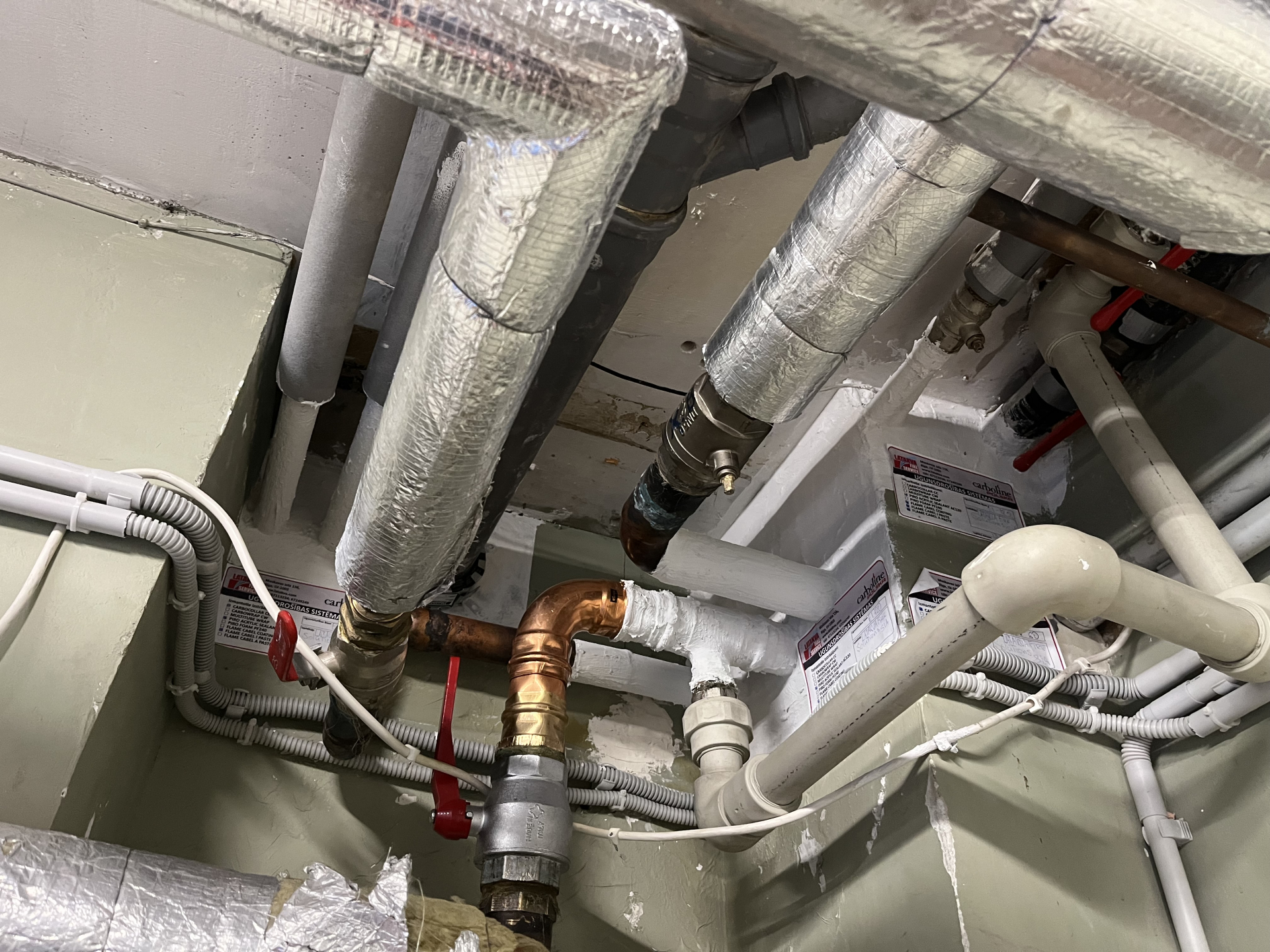

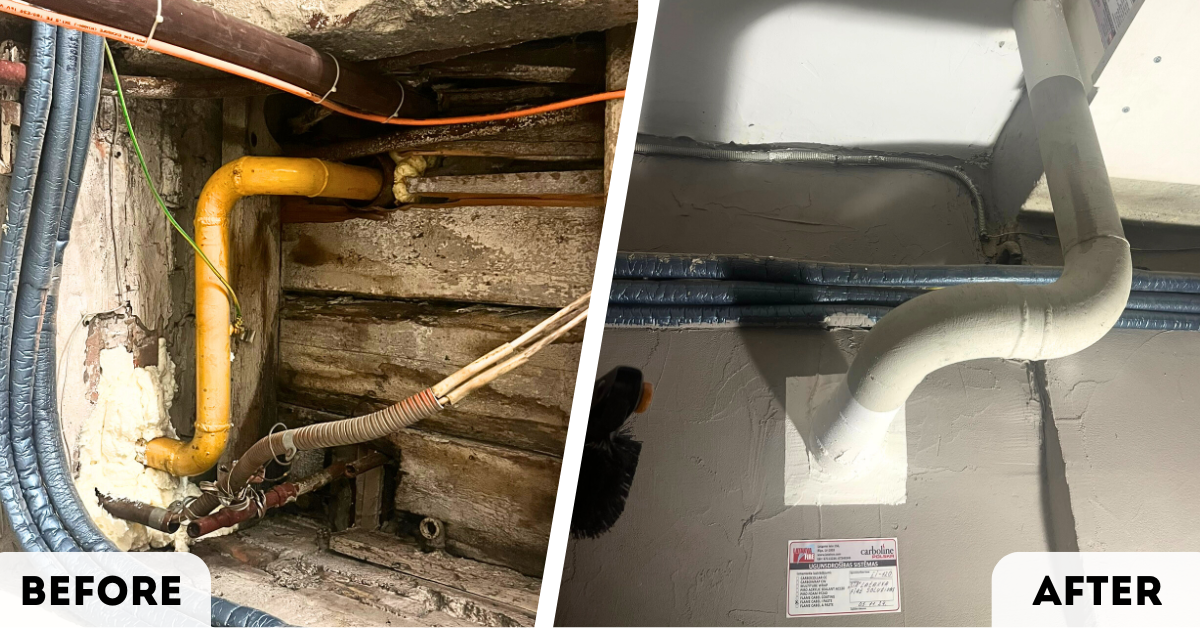

PENETRATIONS

• Clean the penetration opening, cables and pipes. Degrease, if required.
• Install the mineral wool boards.
• Protect the adjoining surfaces with a tape.
• Mix the flame Cabel A Paste.

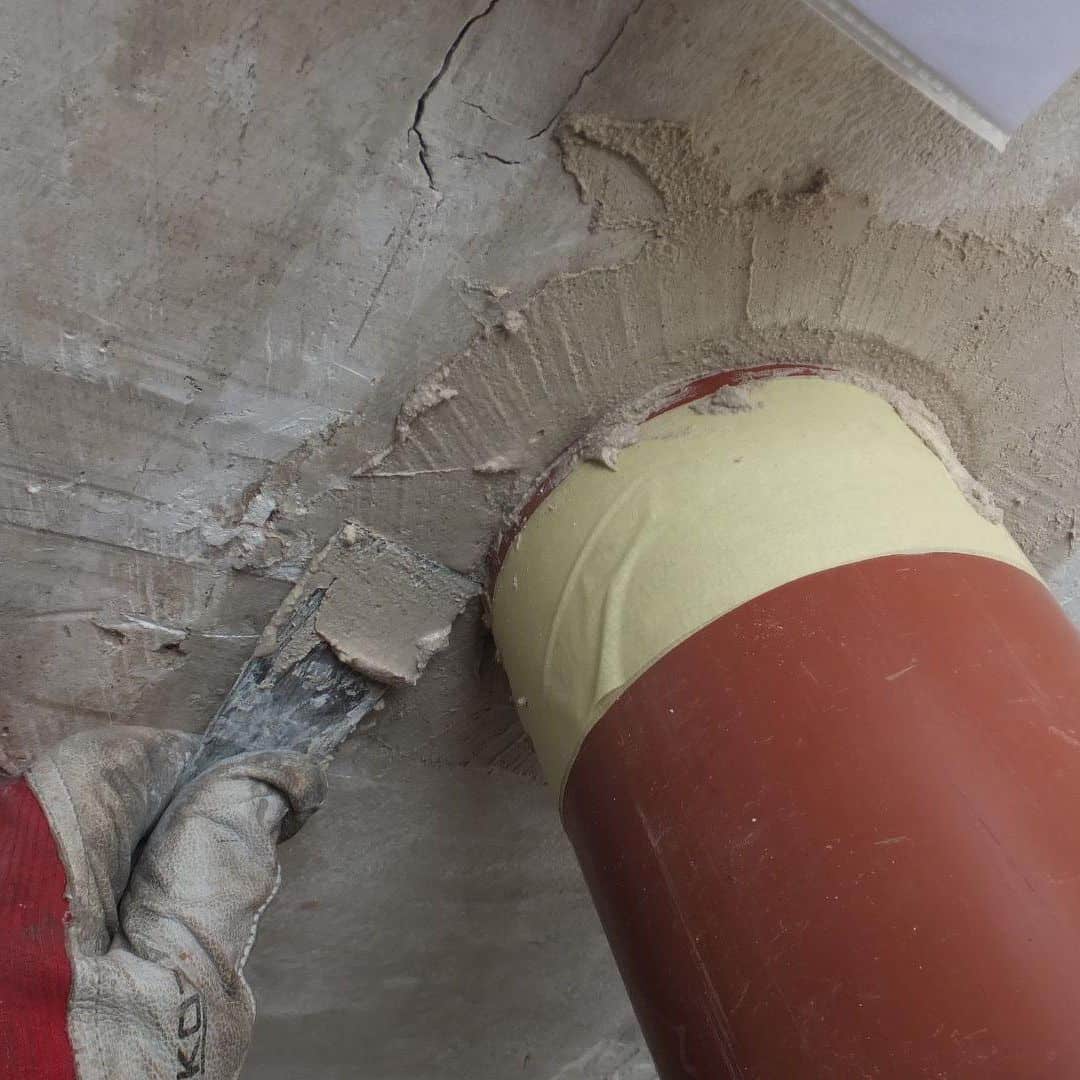

• Apply several layers with a spatula.
• Mark the penetration seal with the information imprint supplied together with each bucket of the Flam Cabel A Paste.

LINEAR JOINTS

• Clean the joint.
• Protect the adjoining surfaces with a tape.
• Mix the Flame Cabel A Paste.
• Insert mineral wool into the joint.
• Apply the required amount of the paste with a spatula.
• Mark the made penetration seal with the information imprint supplied together with each bucket of the Flame Cabel A Paste.

• Application: Metal pipe with mineral wool insulation, Metal pipe with combustible insulation, Mixed penetrations, Linear joints and gap seals
