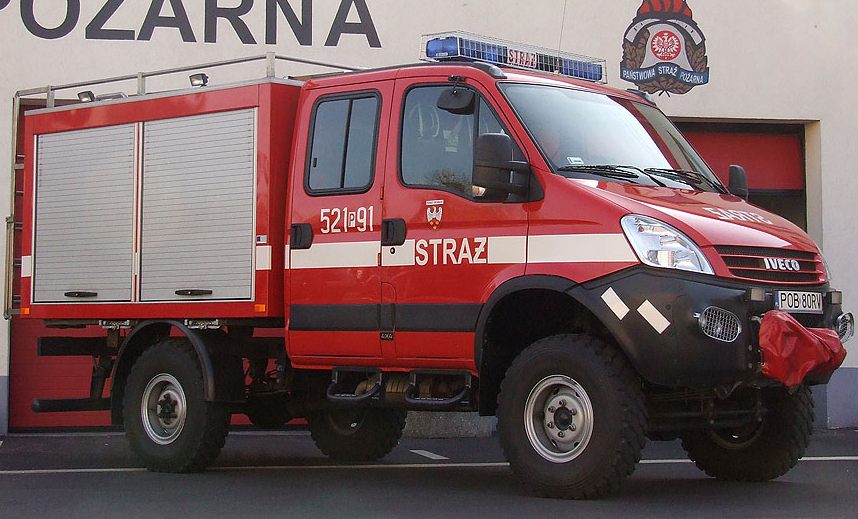

Fire-rescue vehicle (Iveco Daily 4 × 4)

Technical data:

• GLBA
• Engine: compression ignition and turbocharging
• Fuel type: diesel fuel
• Engine capacity [cm 3 ]: 2.998
• Engine power [kW (hp)]: 125 (170)
• Torque [Nm]: 400
• Exhaust emission standard: EURO 5
• Number of gears: 24 + 4 reverse
• Drive: on both axles, 3 differential locks
• Permissible total weight [kg]: 5.500
• Number of seats: 6

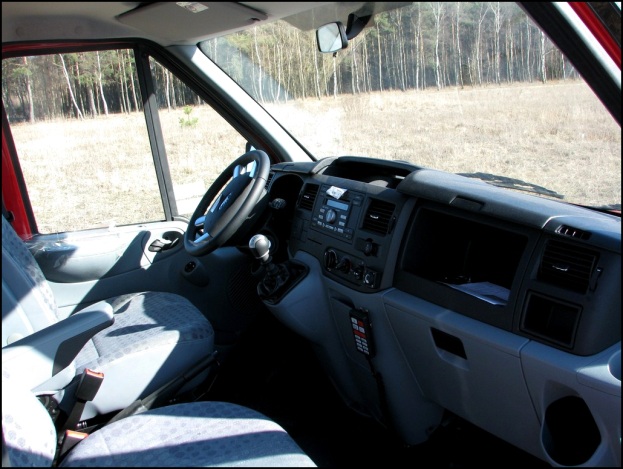

Vehicle highlights:

• double cabin on the frame
• glazing in the passenger section
• passenger compartment lined with upholstery and headlining
• additional cigarette lighter socket in the driver's cabin
• electrically adjustable side windows in the driver 's cabin
• central locking controlled by a remote control
• airbag for the driver
• ABS
• air conditioning
• electrically adjustable and heated side mirrors
• on-board computer (indicating external temperature, average fuel consumption, range)

Marking:

• a light bar with the word "STRAŻ"
• a generator of light and sound signals with the possibility of giving spoken messages
• a blue flash lamp at the rear of the car
• front LED flash lamps located at the level of the front mirrors of a passenger car

Building

• passenger compartment lighting switched on from the driver's cabin
• LED cargo compartment lighting switched on automatically when the shutter is opened
• skeleton construction, made of stainless steel sections, with an intermediate frame screwed to the chassis frame
• external sheathing made of smooth aluminium alloy sheet

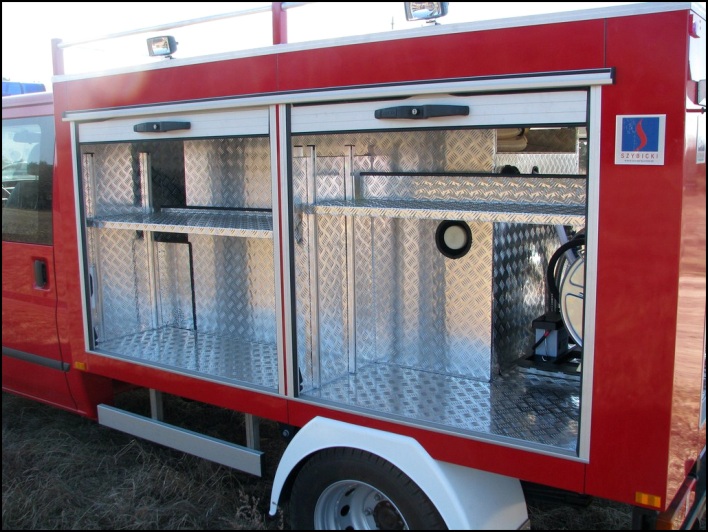

• adjustable aluminium shelves with space for specialist firefighting equipment
• LED work field lighting

Vehicle roof:

• made in the form of a working platform covered with an aluminium sheet with an anti -skid pattern
• its structure will withstand the weight of two firefighters and the transported equipment
• space for a three-element attachment ladder

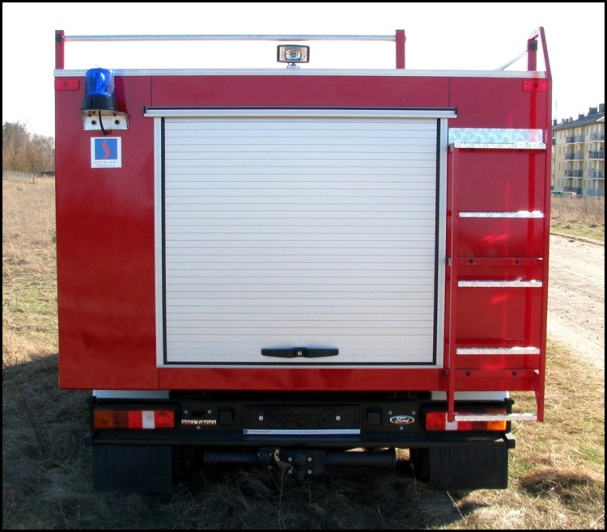

• aluminium dust- and watertight roller shutters (2 on the sides and one at the back of the building)
• height of the building equal to vehicle height

Additional equipment:

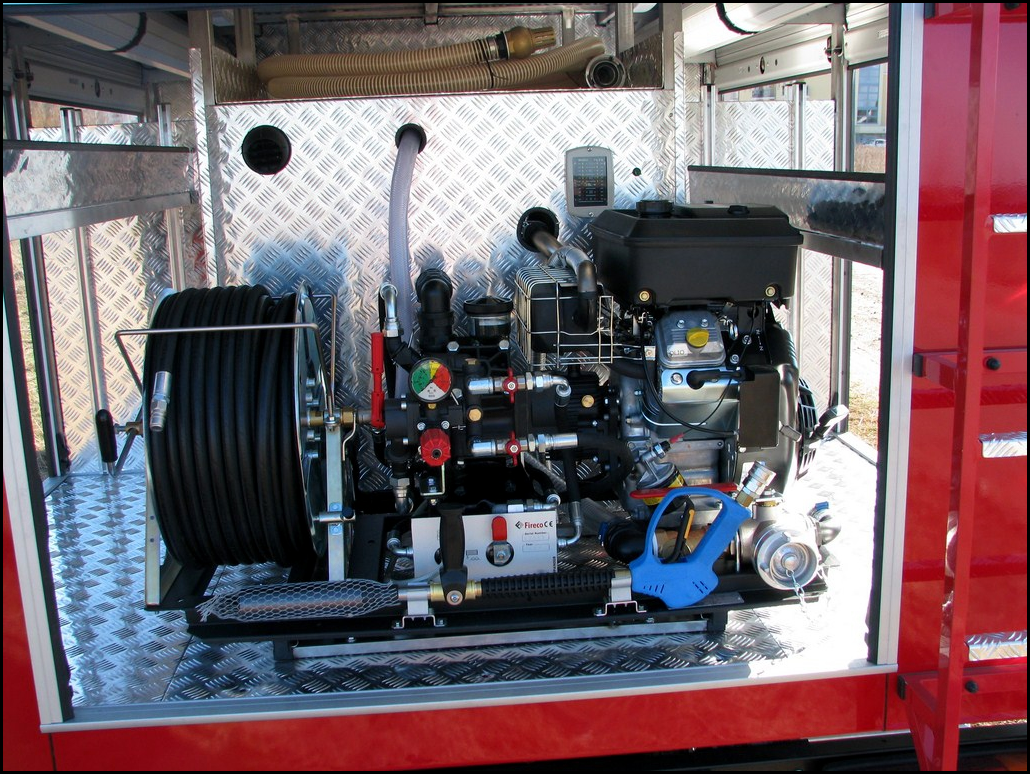

1. Fireco high-pressure aggregate

• pump capacity 50 l / min, at a pressure of 40 bar
• four-stroke engine
• electric or manual start
• quick attack line 60 rm with a manual reel
• pistol nozzle, with adjustable stream from fog to compact, and the possibility of feeding heavy foam
• water tank with capacity of 300 litres and a tank for foaming agent with a capacity of 20 litres

2. Communication: 4

• 1 mobile radiotelephone
• 2 wearable radios
• wearable radios with a charging station permanently installed in the vehicle
• parameters: VHF frequency136-174MHz, power 1 -: - 25W, 12.5 kHz channel spacing adapted to use in the MSWiA network
• min. 255 channels (wearable), min. 128 channels (car)
• alphanumeric display min. 14 characters
• rotary volume potentiometer.

3. Portable halogen lamp (searchlight) powered from the 12V cigarette lighter socket
4. Ball-type hook for trailers with a total weight not exceeding 3500 kg, according to PN-76 / S-47291
5. Electric socket for the trailer - standardized 12V, 7-pin socket, acc. to PN-83 / S-76055
6. A fire headlight
7. Pneumatic lighting mast with electric control
8. Light wave in the rear part of the vehicle ( additional option )
9. LCD message display in the rear part of the vehicle ( additional option )
10. Electric winch with roller guide 12. 2 EX
battery flashlightswith a charging station permanently installed in the vehicle
12. Reversing camera ( additional option )
13. Additional set of wheels equipped with winter tires ( additional option )

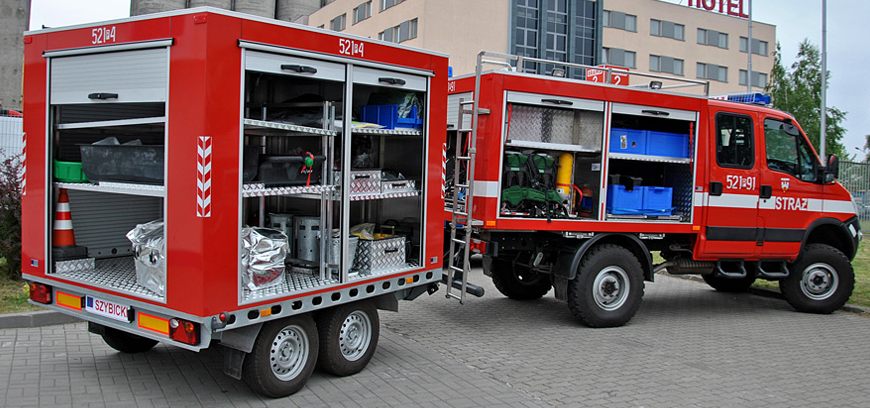

14. Two-axle trailer with container body (additional option)
