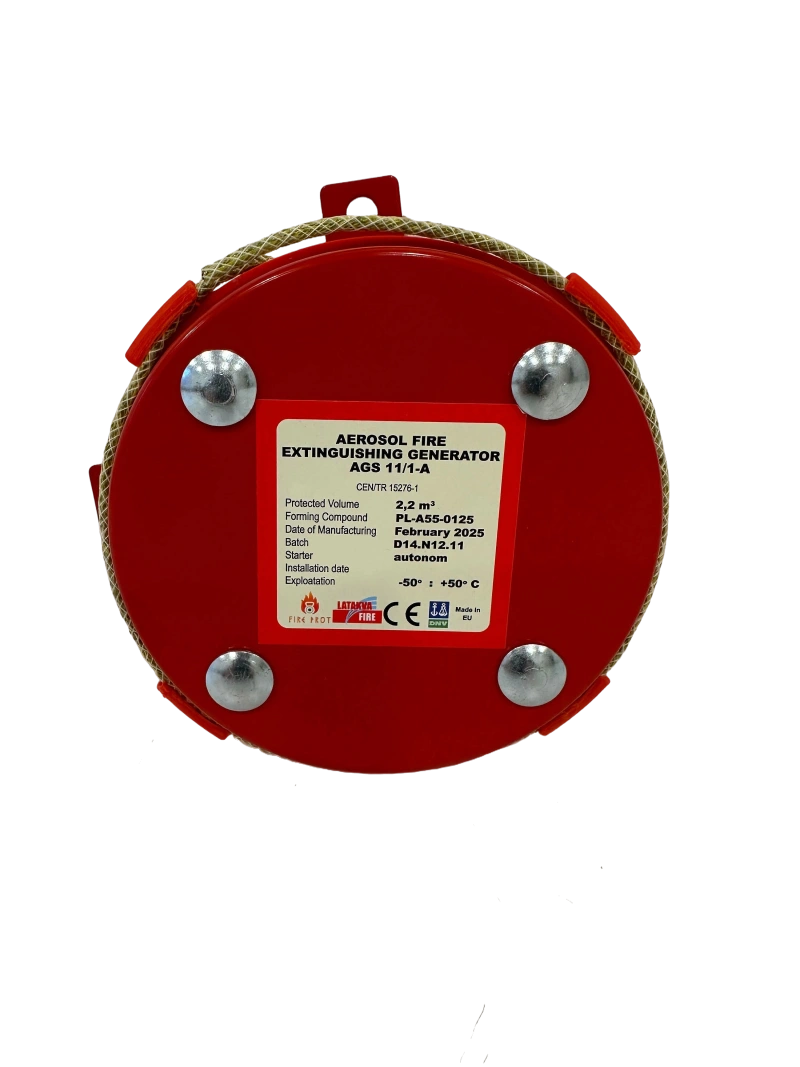

Fire extinguishing aerosol generator AGS-11/1 with thermal cord

Technical specifications

• The extinguishing aerosol-forming agent mass (kg): 0.1
• Working duration (s): 7
• The temperature of the firefighting aerosol emission at 0.5 m distance from the generator (°C): 50
• Diameter – length (mm): 122 × 25
• Protected area (m3): 2
• Weight (kg): 0.2
• Operating temperature range (°C): -50: +50

Used for

The aerosol fire extinguishing generator „AGS-11/1” (thereafter – generator) is a highly effective fire suppression unit. It is currently listed for fire hazards involving a flammable material and flammable and combustible materials liquids (fuel and other oil-related products, organic solvents etc.), solid combustibles (wood, insulating material, plastic and other), and also energized electrical equipment (high-powered and high-voltage equipment, household and industrial electronics etc.), including electrical equipment under 40 kV voltage.

It is required to use a generator in accordance with the standards and rules for the fire-fighting and alarm systems.
The generators shall not be used on fires involving reactive metals such as alkaline metals and earth metals, and also on fires which involve certain materials that are capable to burn without air.

The generators AGS-11/1 are manufactured with the weight of the extinguishing aerosol-forming agent of 0, 11 +0, 01 kg.

The generators are used for protection of premises with the volume of 2, 2 m3.
