Cable Tray Protection TECBOR® 40 - EI-120

Rating:

4.5/5 based on 1 reviews!

TEST

Standard: UNE EN 1363-1. Ul 1709 Heating Curve
Laboratory: CIDEMCO
Test Nº: 25417

SOLUTION

Tecbor® 40 mm boards.
Tecbor® 20 mm boards.
M12 rod.
Tecbor® joint paste ready to use.
50 × 50 × 5 mm angle section every 1000 mm.
3, 5 × 45 mm self-drilling screw.
5, 2 × 80 mm self-tapping screw.
3, 5 × 45 mm self-tapping screw.
Slab.
Cable tray.

price on request

Order

*Product descriptions are based on manufacturer information. Descriptions and images are indicative and may change. Configuration or parameters may be adjusted according to manufacturer updates.

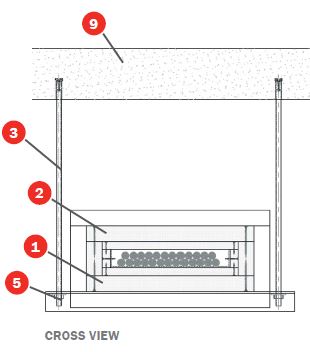

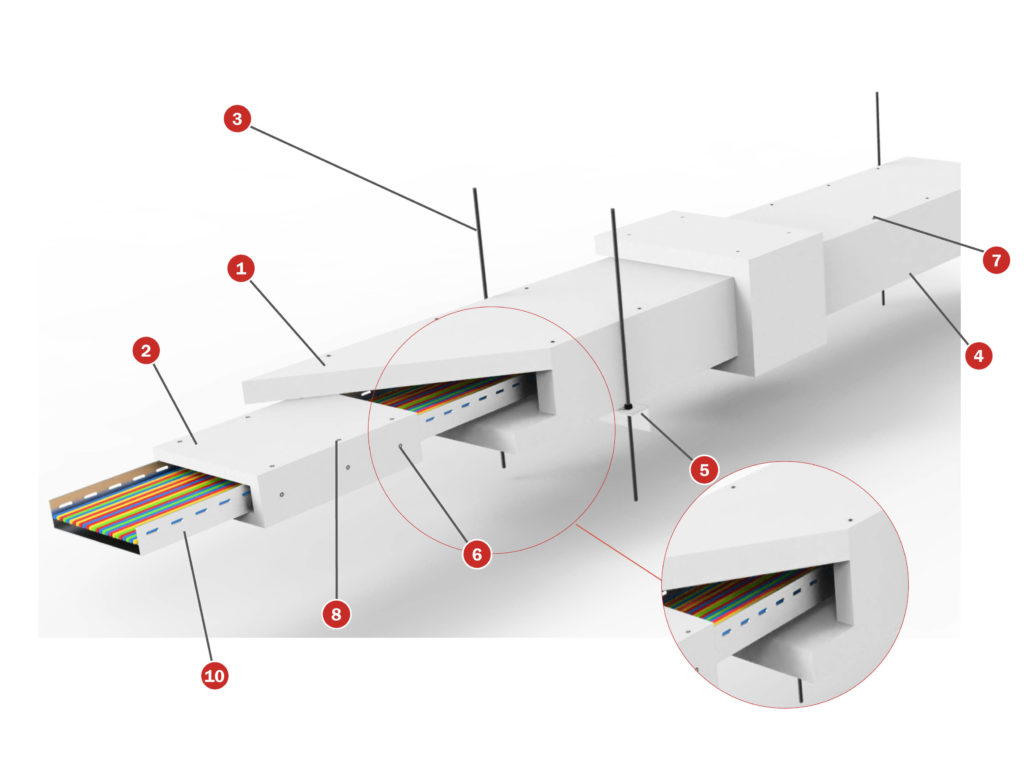

The tray is protected by a layer of Tecbor® 40 mm boards set together with 5.2 × 80 mm self-tapping screws. At duct section joints, place a 200 mm wide board strip of 20 mm Tecbor® B and fix it to the metal tray and to each other using 3.5 × 45 mm screws.

The duct is anchored to the slabs with a 12 mm rod and supported by 50 × 50 × 5 mm angle sections.

Board joints and screw heads should be covered with Tecbor® joint paste ready to use.

Penetrations seals: Fill the hole between the duct and the structural work with 50 mm and 145 kg/m3 rock wool and paint both sides with Tecbor® joint paste 1 ready to use.
