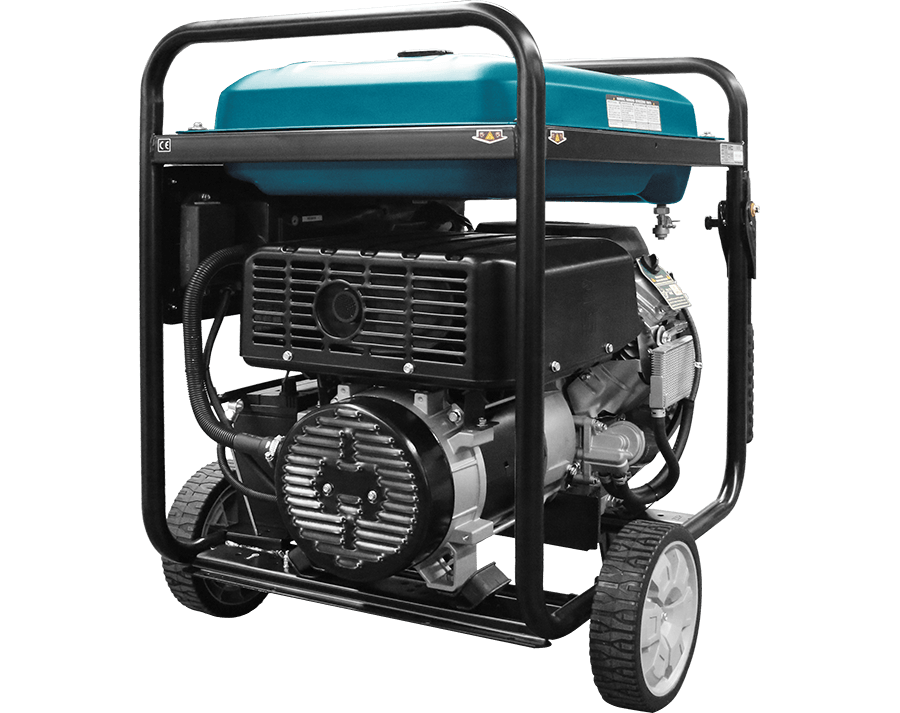

2-cylinders petrol generator "Könner & Söhnen" KS 15-1E 1/3 ATSR

Name: 2-cylinders petrol generator "Könner & Söhnen" KS 15-1E 1/3 ATSR
Brand: KONNER_SOHNEN
SKU: KS 15-1E 1/3 ATSR

Best price

Manufacturer: KONNER_SOHNEN

Model: KS 15-1E 1/3 ATSR

Rating:

4.1/5 based on 2 reviews!

The high-performance KS 15-1E 1/3 ATSR petrol generator is based on a robust proprietary 22 HP two-cylinder engine from “Könner & Söhnen” that meets all European quality standards, including the latest EURO 5 emission standards.

This generator is suitable for connecting an ATS unit and has a unique VTS phase switching system, which allows using the generator both in single-phase mode (230 V) and three-phase mode (400 V) with almost no power loss. A user-friendly ergonomic control panel with an engine emergency stop button and a multifunction LED display allows monitoring of the generator operation: voltage, frequency, operating hours, as well as oil level. This model is equipped with sockets for full power removal by the generator. The sockets are equipped with fuses and completed with suitable plugs. The high-capacity 55 l fuel tank ensures lengthy and continuous operation.

price on request

Order

*Product descriptions are based on manufacturer information. Descriptions and images are indicative and may change. Configuration or parameters may be adjusted according to manufacturer updates.

Technical documentation

Max/Nominal power 230V 11.5/11.0 kW
Max/Nominal power 400V 15.6/15.0 kVA
Engine power 22 HP
Fuel type petrol
Engine model KS 780
Sockets 1 × 32A (400V)
1 × 63A (230V)
Fuel Tank Volume 55 l
Crank case volume 1.5 l
Net weight 157 kg
Voltage 230V
Frequency 50 Hz

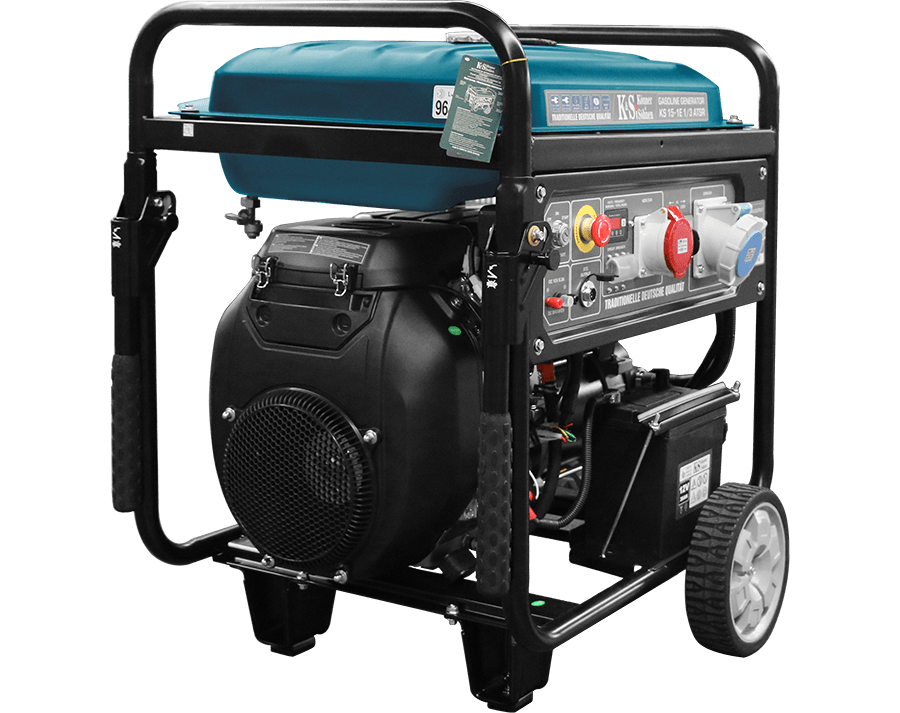

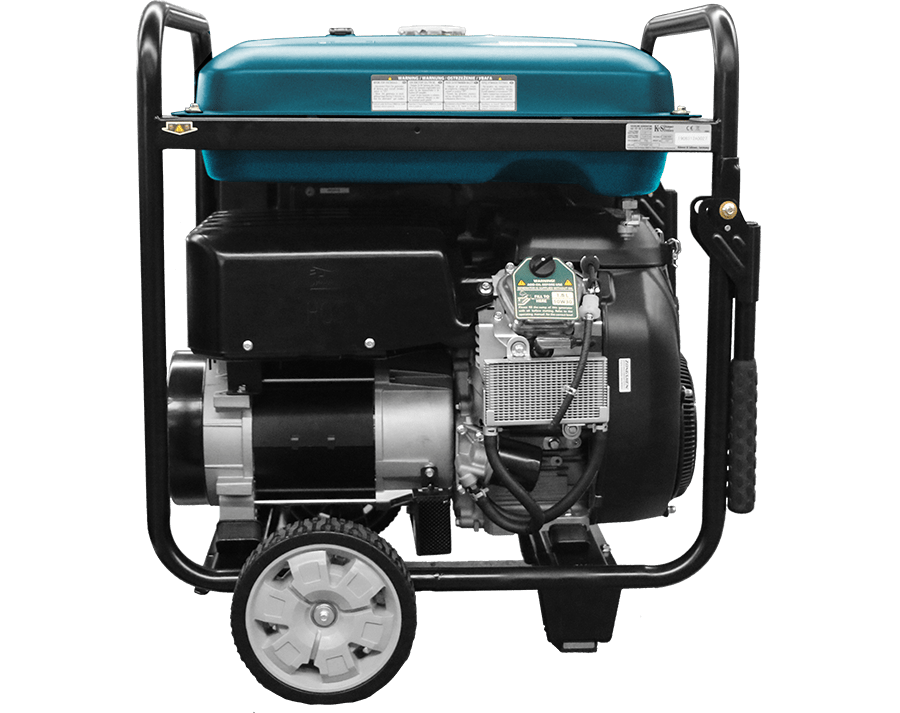

HIGH-PERFORMANCE ENGINE

Powerful and reliable 2-cylinders air-cooled engine (22 HP), high-performance and costeffective, and conform to European quality standards (including exhaust emissions and noise). Each engine has a corporate K&S stamp and an individual serial number in order to ensure the quality control of manufacture and after-sales service.

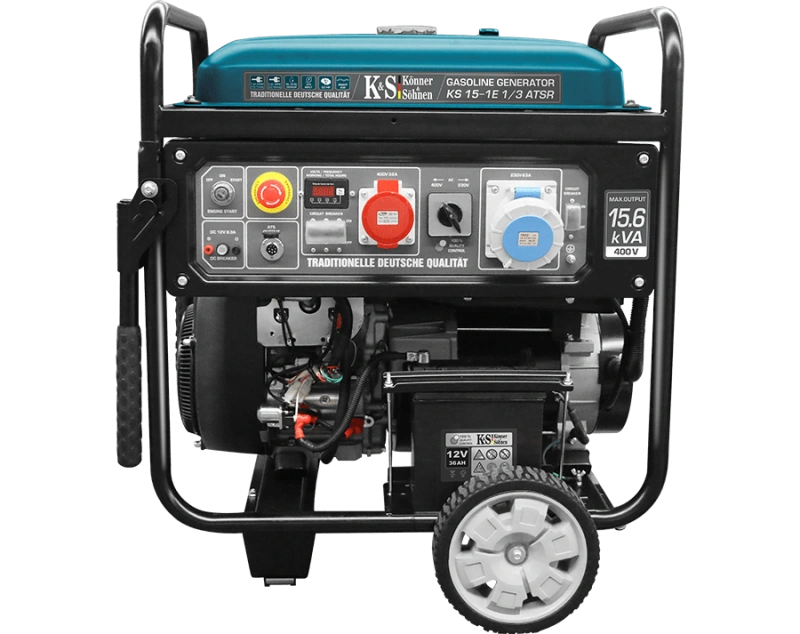

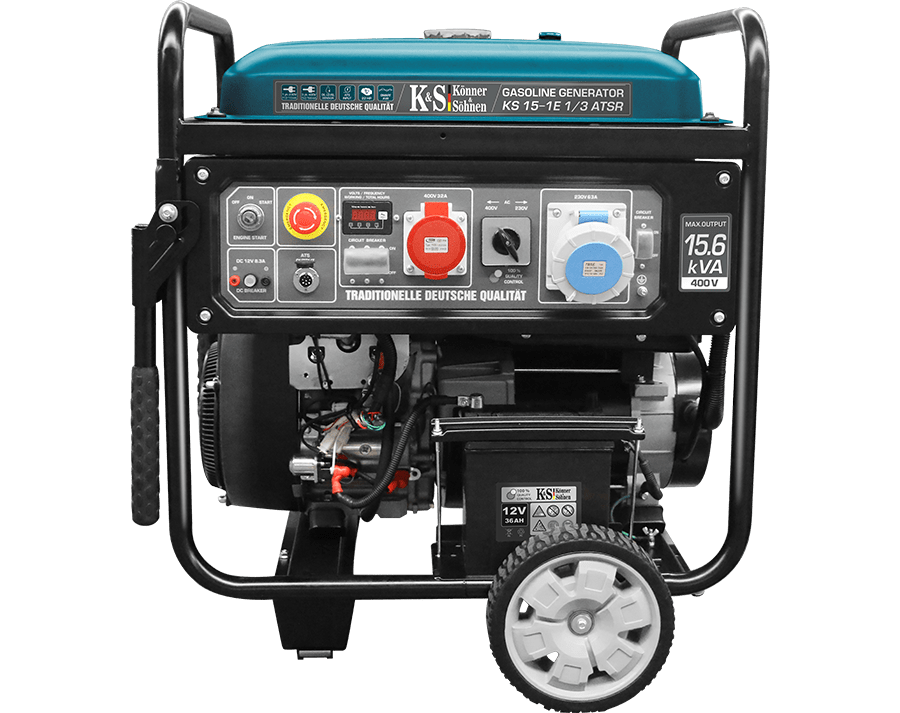

ERGONOMIC CONTROL PANEL

The user-friendly ergonomic control panel allows easy control of the whole device, requires no special skills, and is equipped with sockets designed for removal of full power delivered by the generator and modern LED- display (hour metre, frequency, voltage, oil alarm). PaneI is equipped with engine emergency switc.

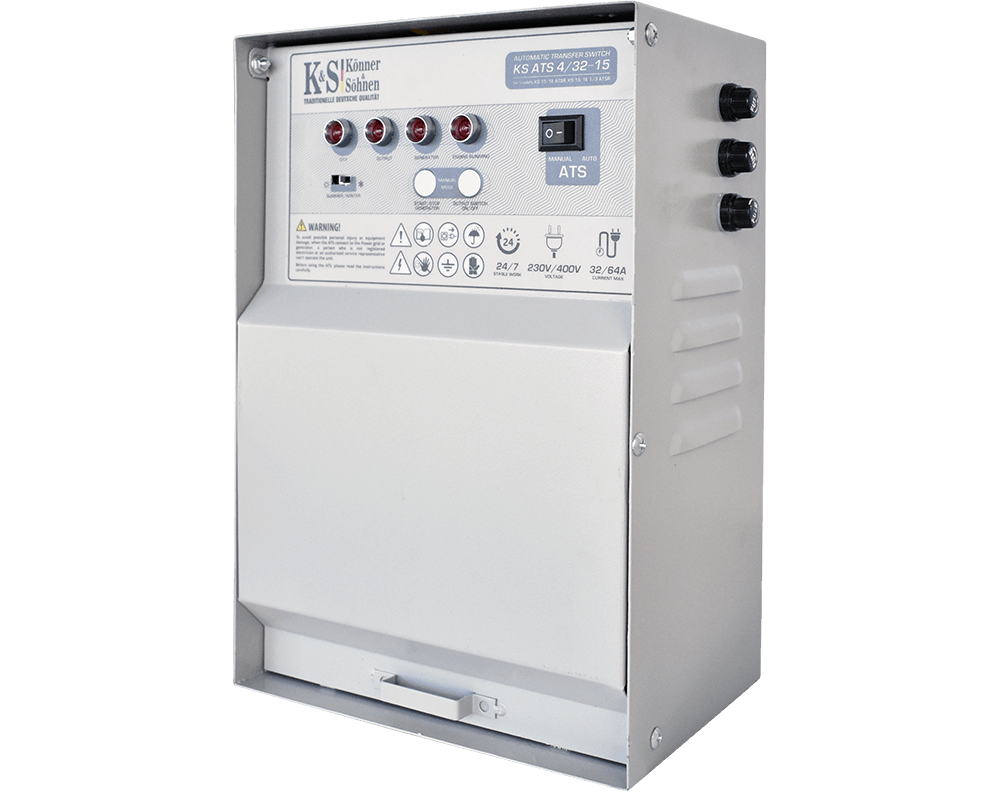

ATS OUTPUT - KS ATS 4/32-15

The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.

Steel tank

“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank (55 l), which extends the generator’s operating time without refuelling. The fuel level indicator is located on the tank for ease of use.
